Description

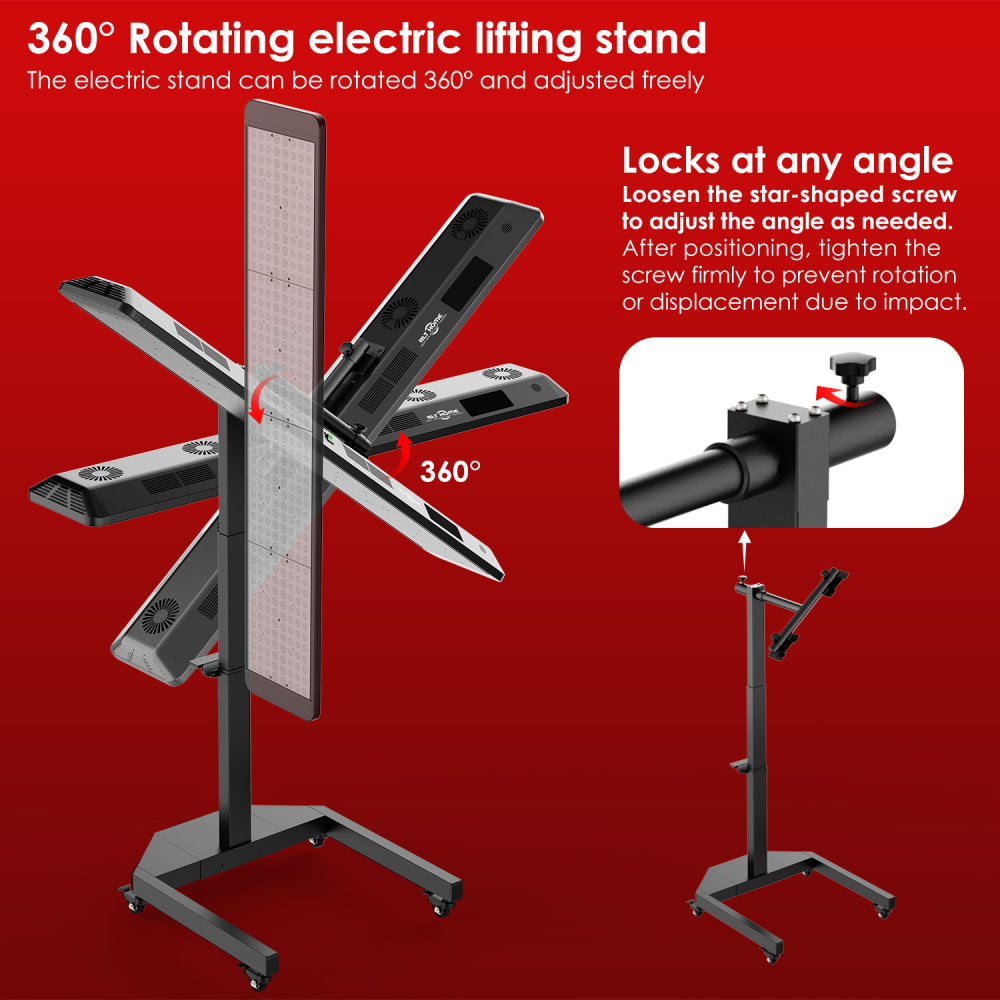

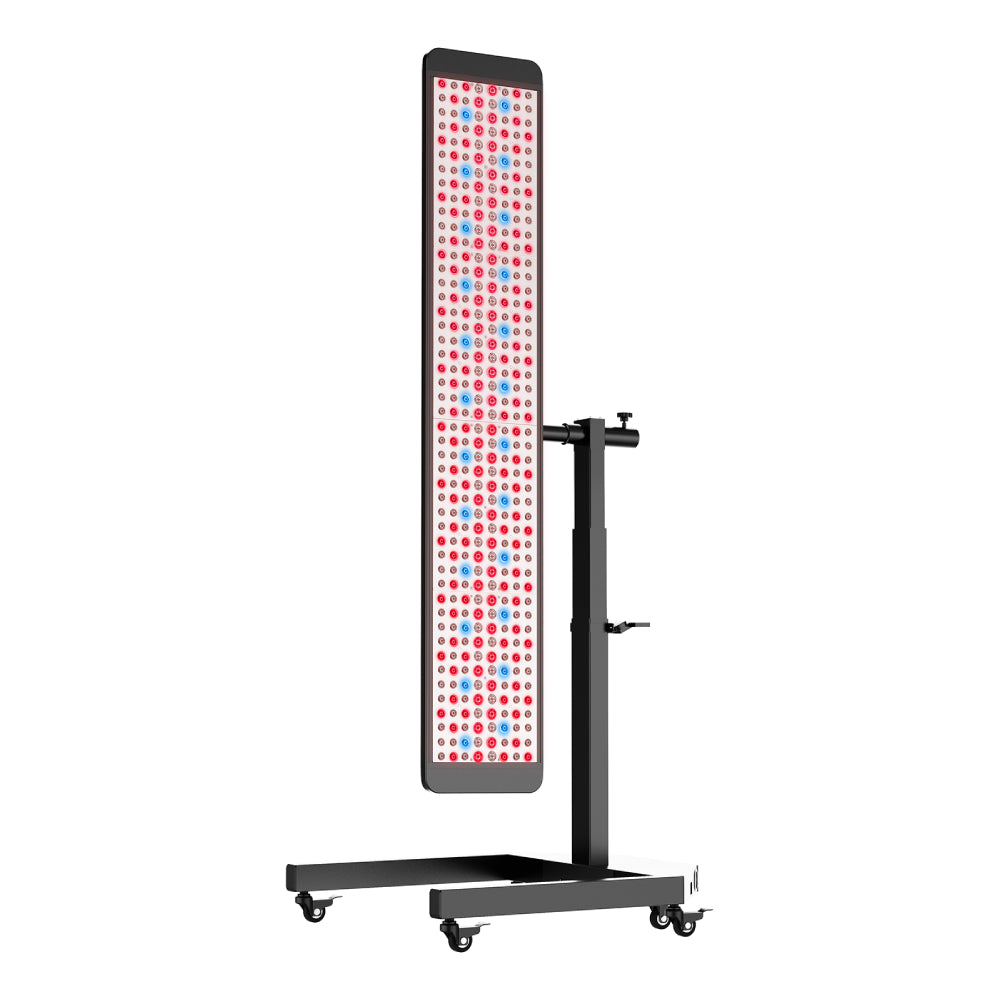

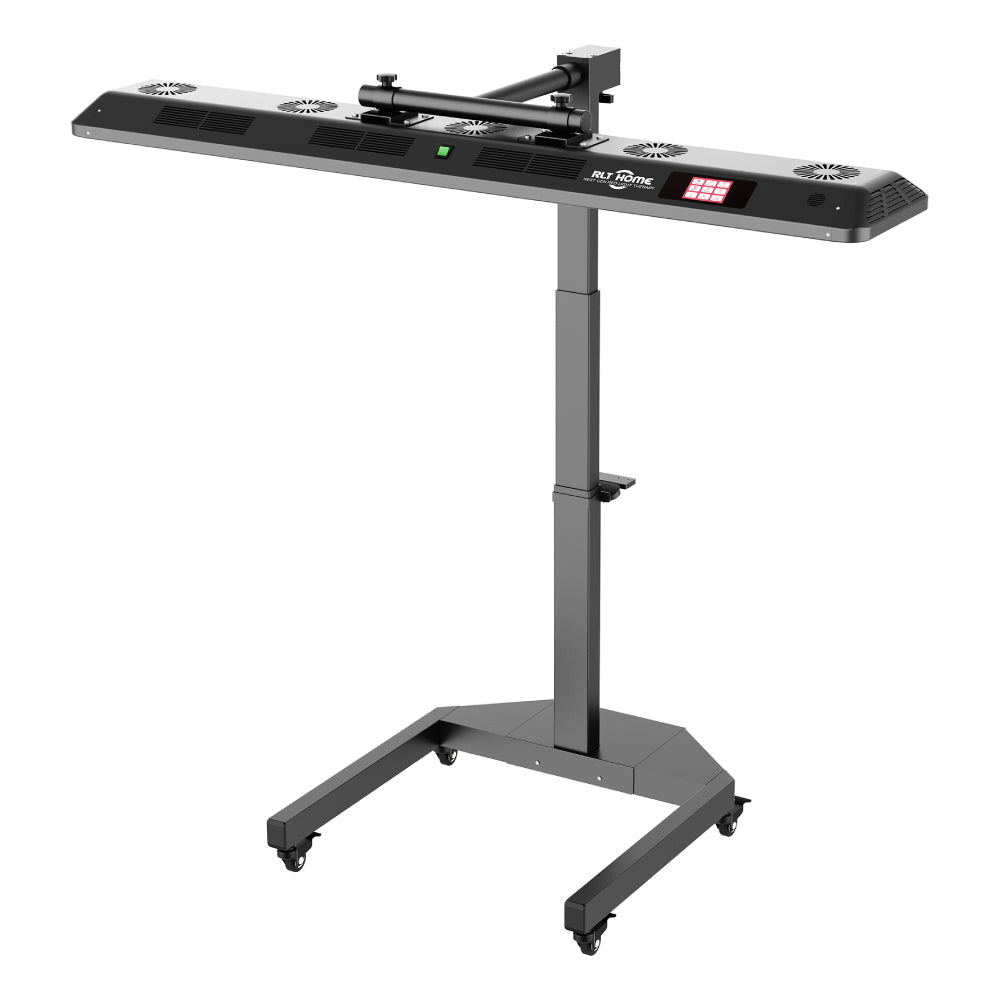

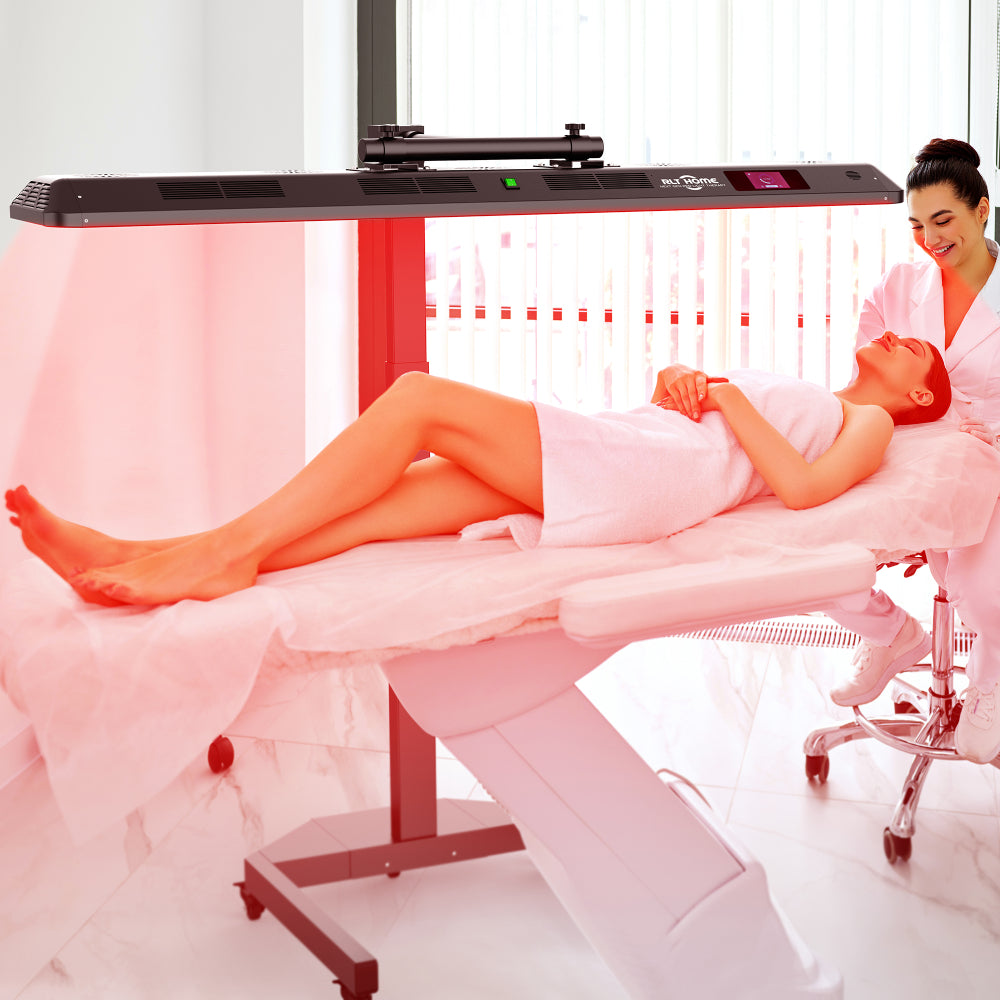

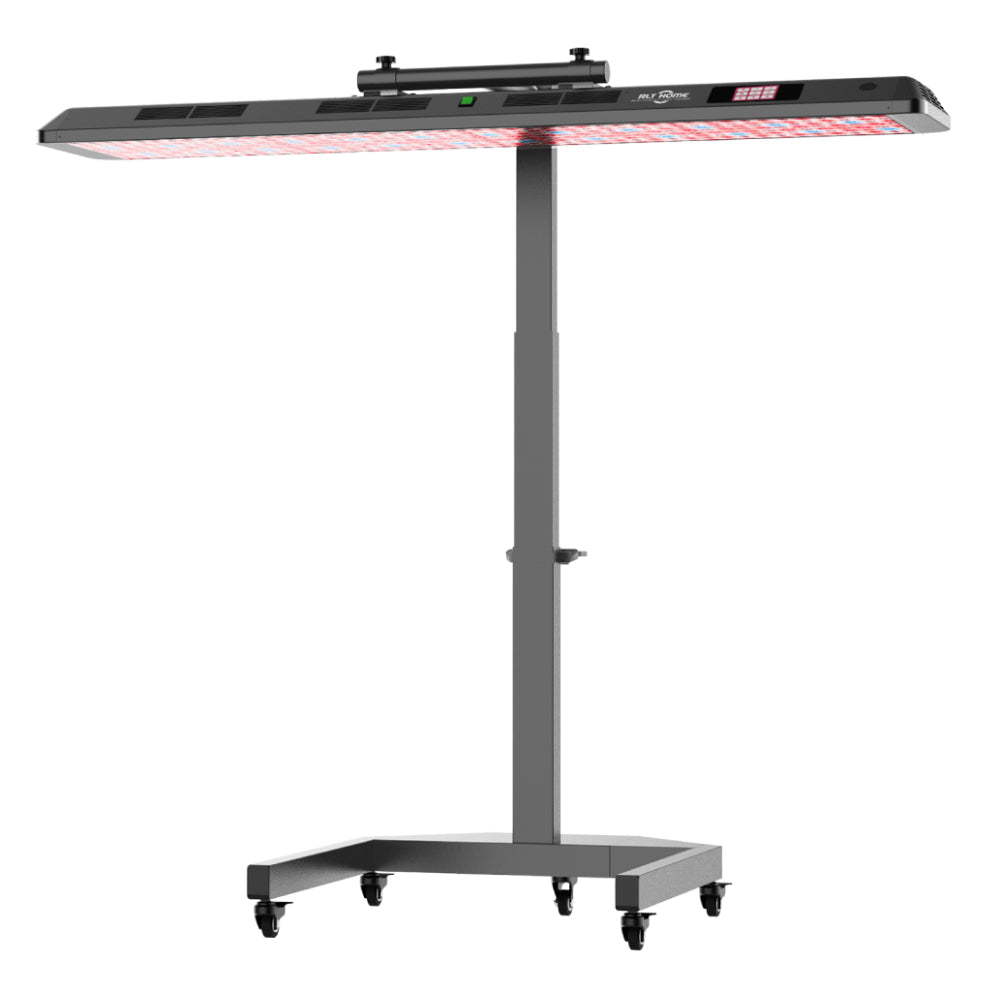

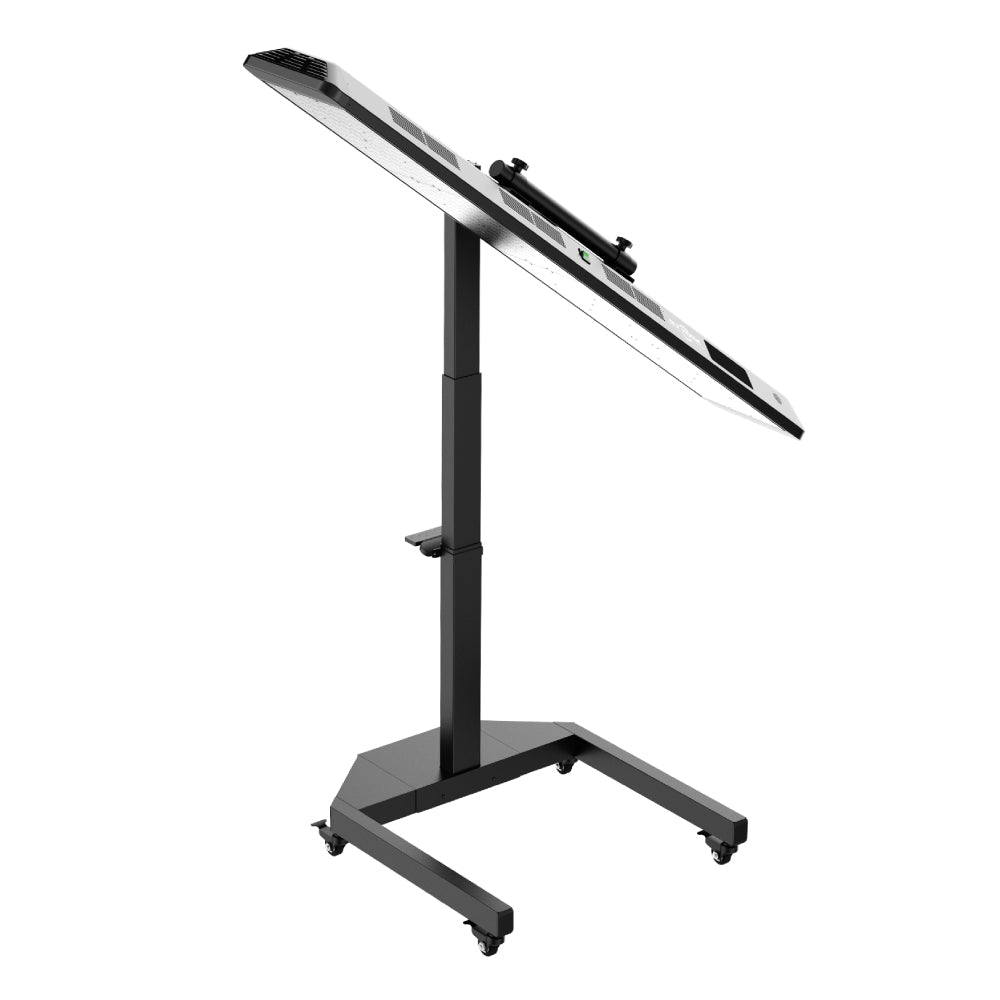

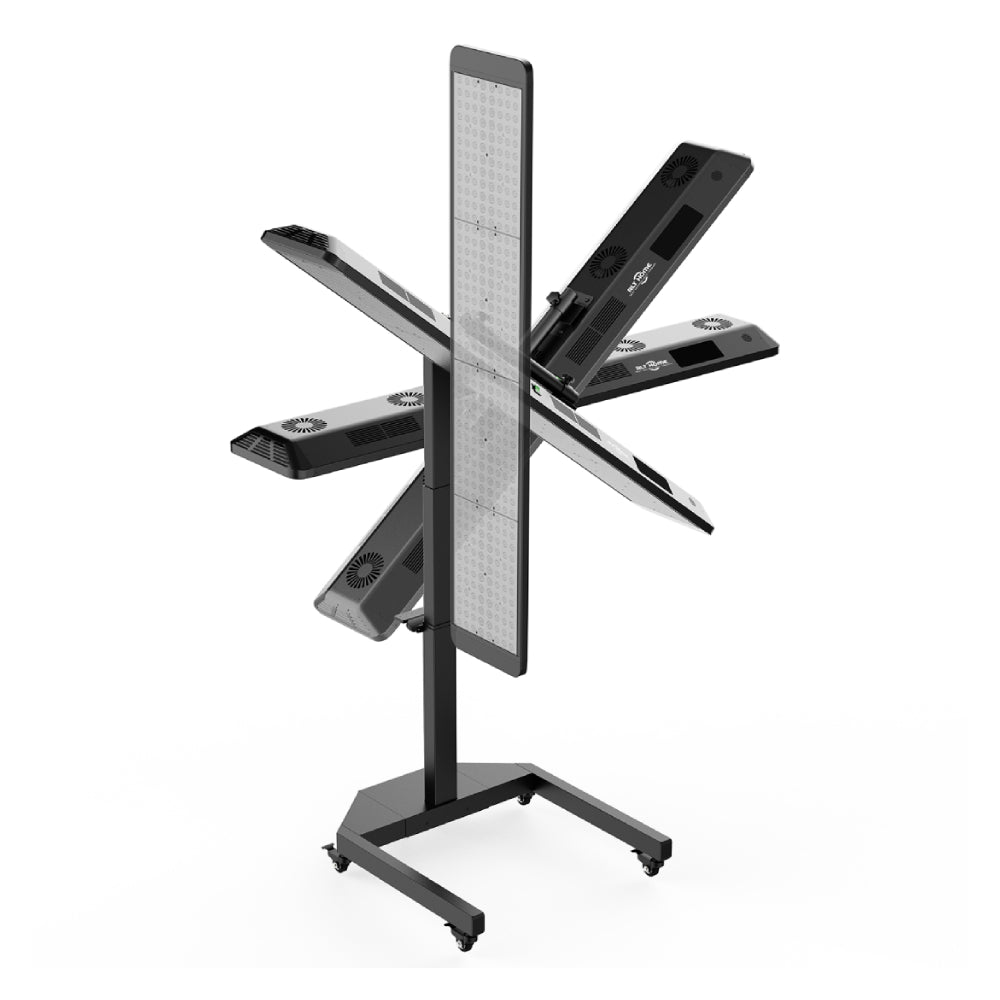

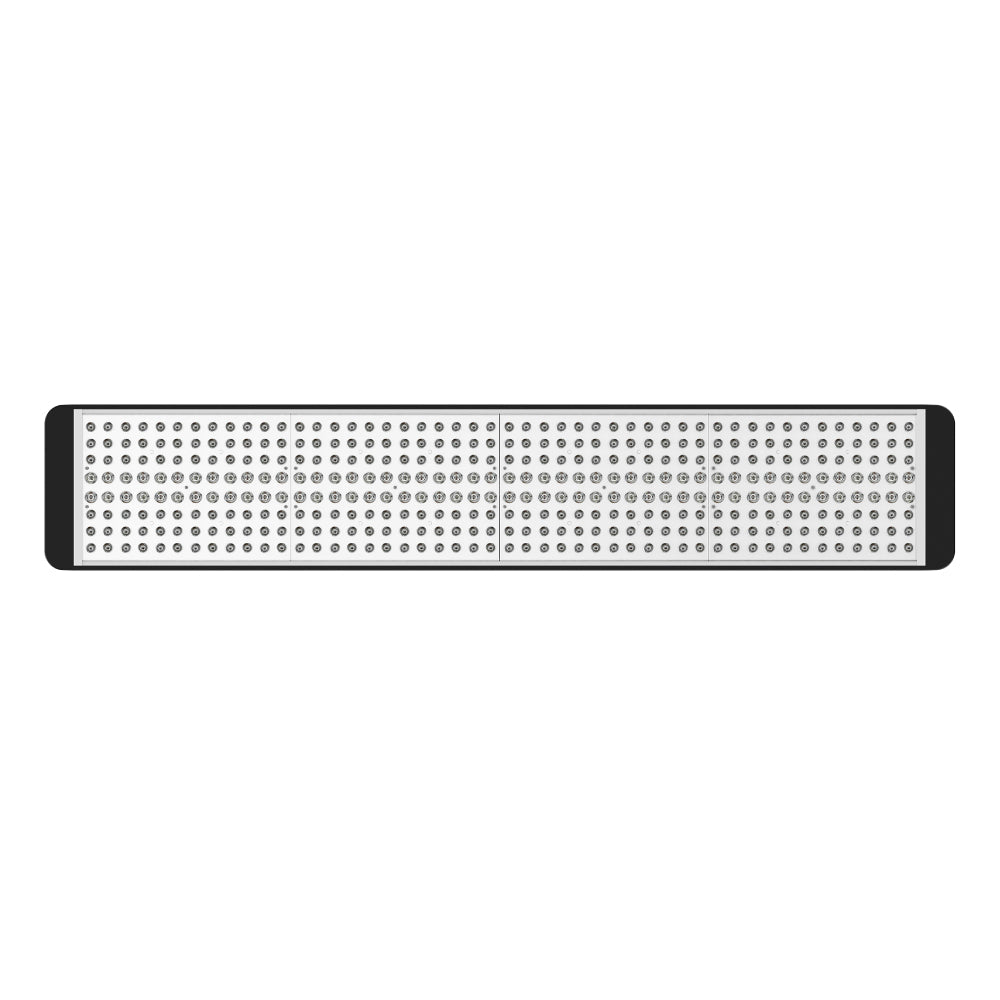

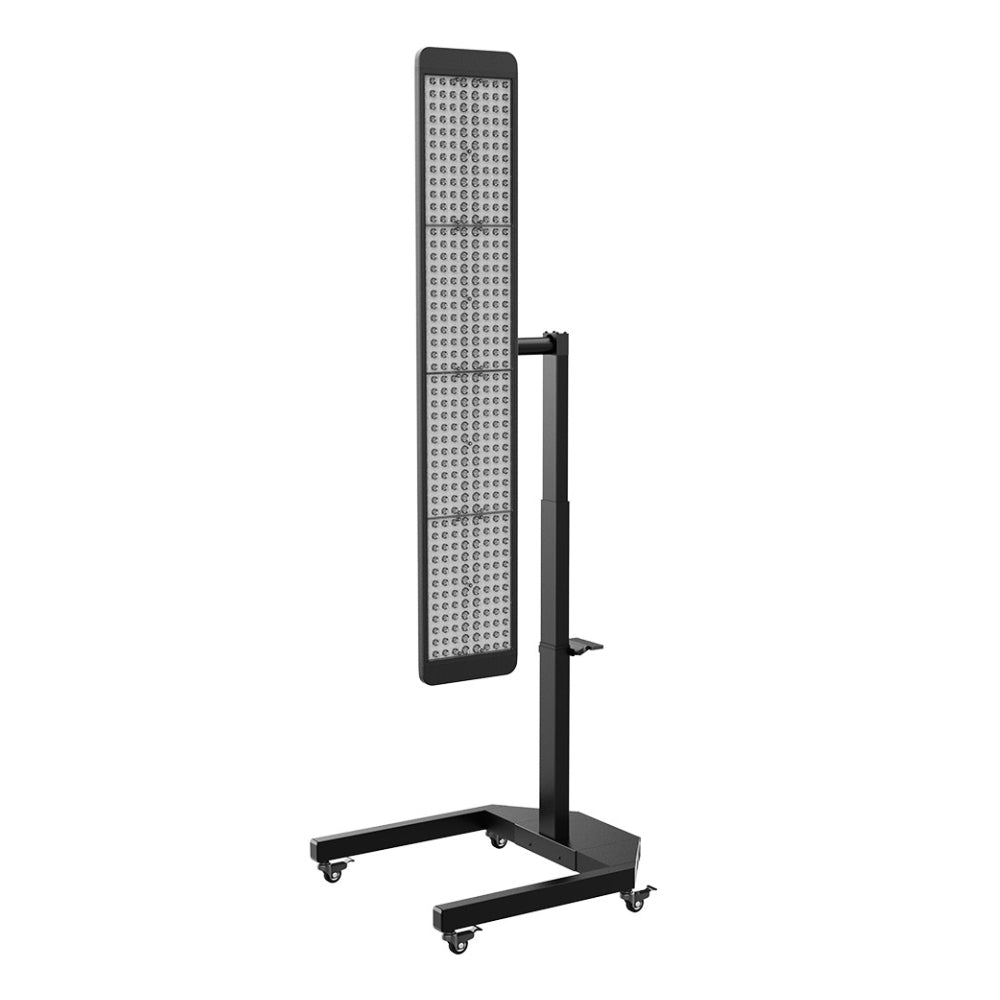

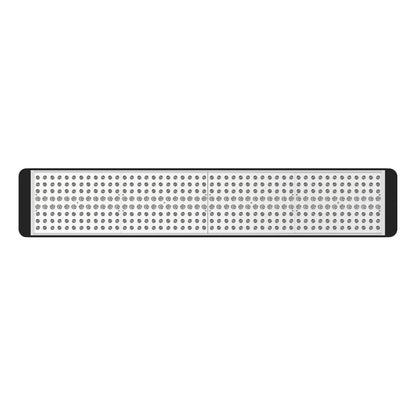

The Total Spectrum ULTRA is the full-body panel with the smarter optics: 480 LEDs across a 64-inch housing, on an adjustable electric stand that positions it over a bed or massage table for lying down, or upright for standing sessions.
Where the ULTRA separates itself is the lens system. Three different beam angles work together — a 30° core, 60° inner lenses for edge-to-edge spread, and 15° outer lenses that keep the light on you instead of the wall. Voice control and Bluetooth audio, so you never have to reach for a remote mid-session.

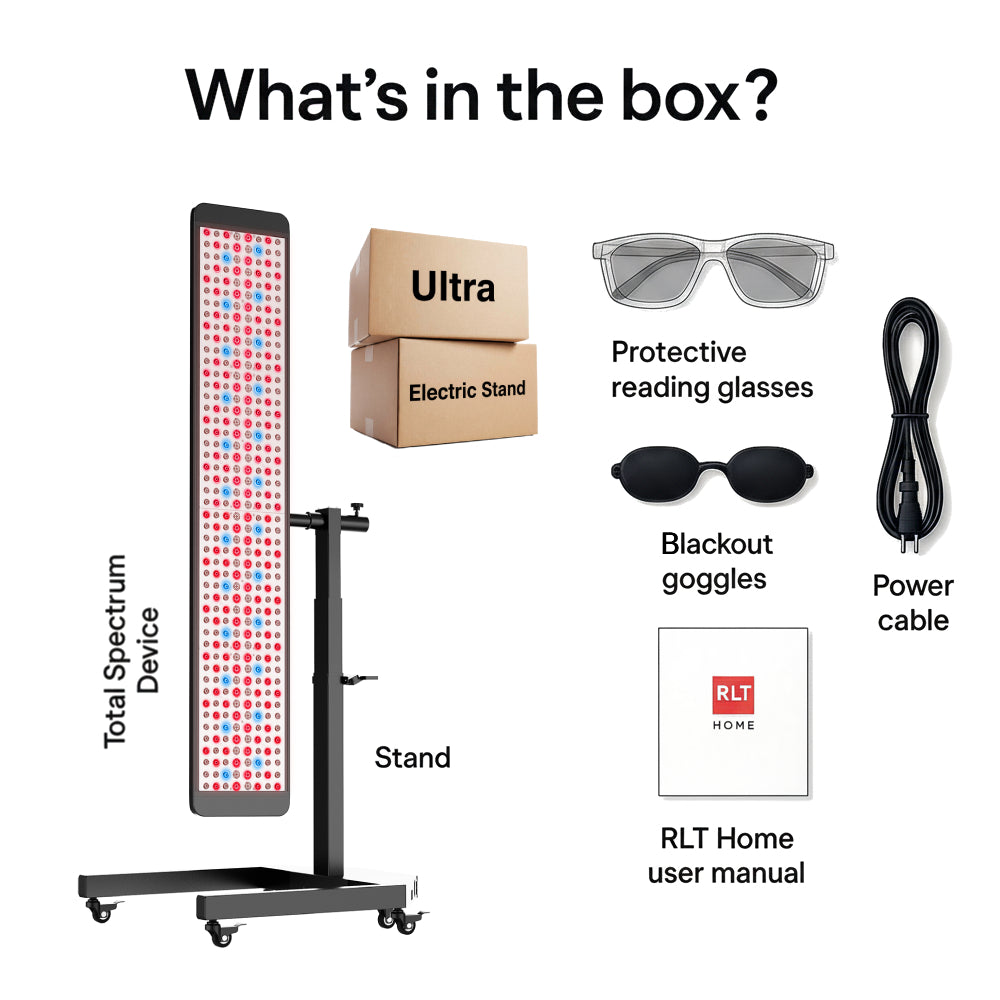

What's Included
- Total Spectrum ULTRA device
- Adjustable electric stand
- Protective reading glasses
- Blackout goggles
- RLT Home user manual
- Power cable

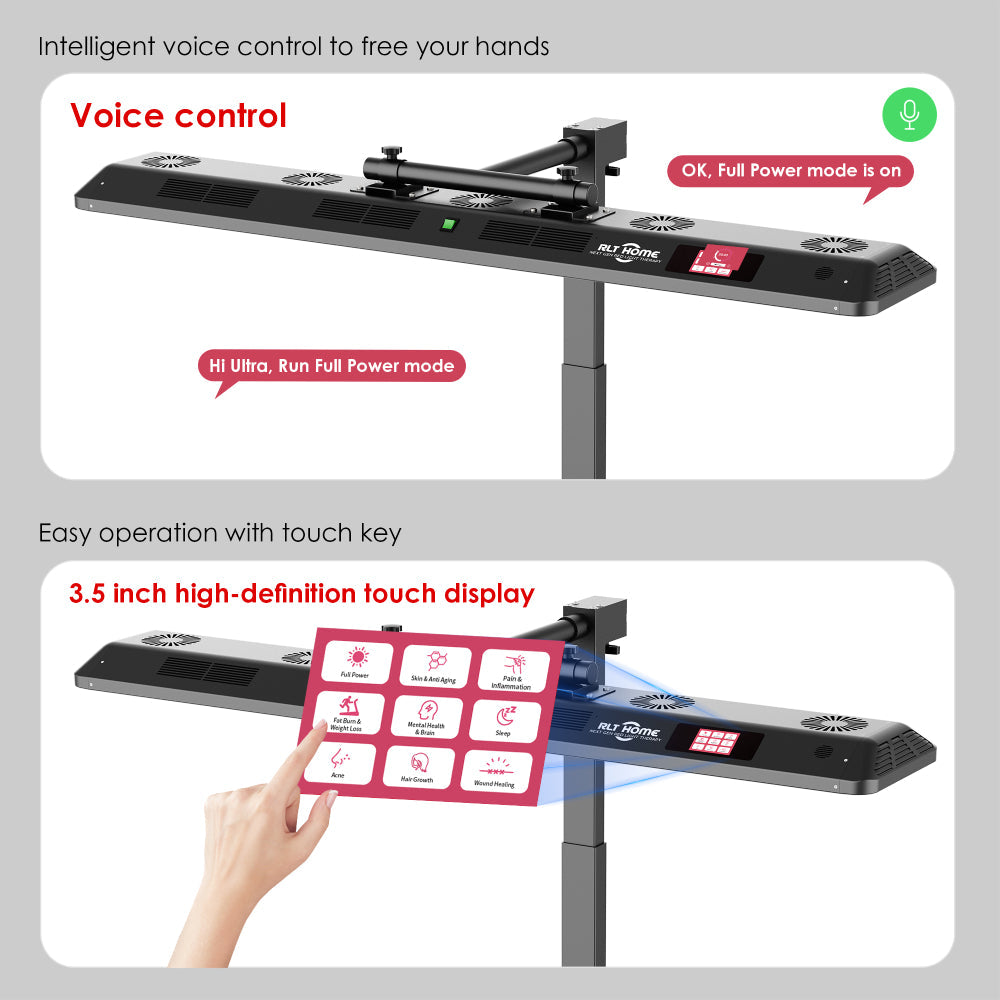

Touch and voice controlled, so no remote is required. The device and the stand ship in separate boxes.
Specifications
- Total LEDs: 480

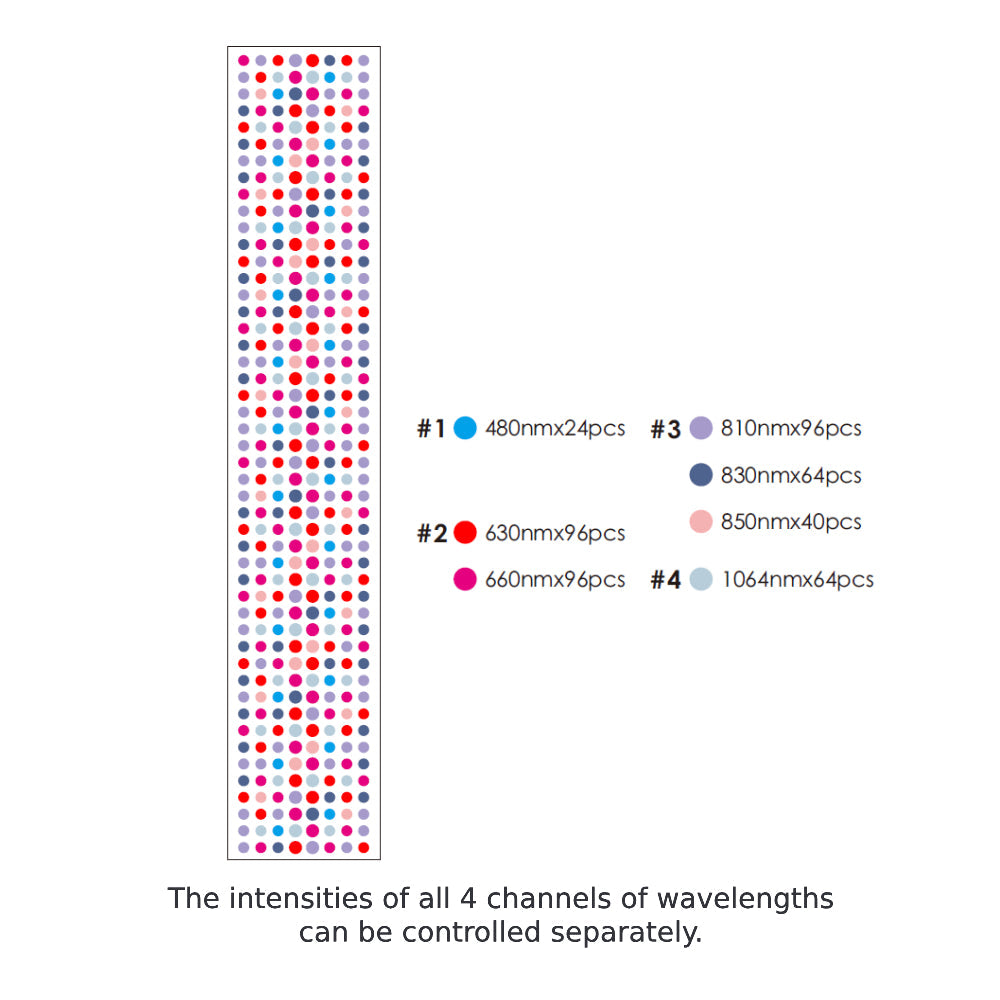

- Wavelengths: 480nm (5% density), 630nm (20%), 660nm (20%), 810nm (20%), 830nm (13%), 850nm (8%), 1064nm (14%)
- Irradiance: 174 mW/cm² at 8 inches (Solar Power Meter); 119.28 mW/cm² at 6 inches (Spectrometer)

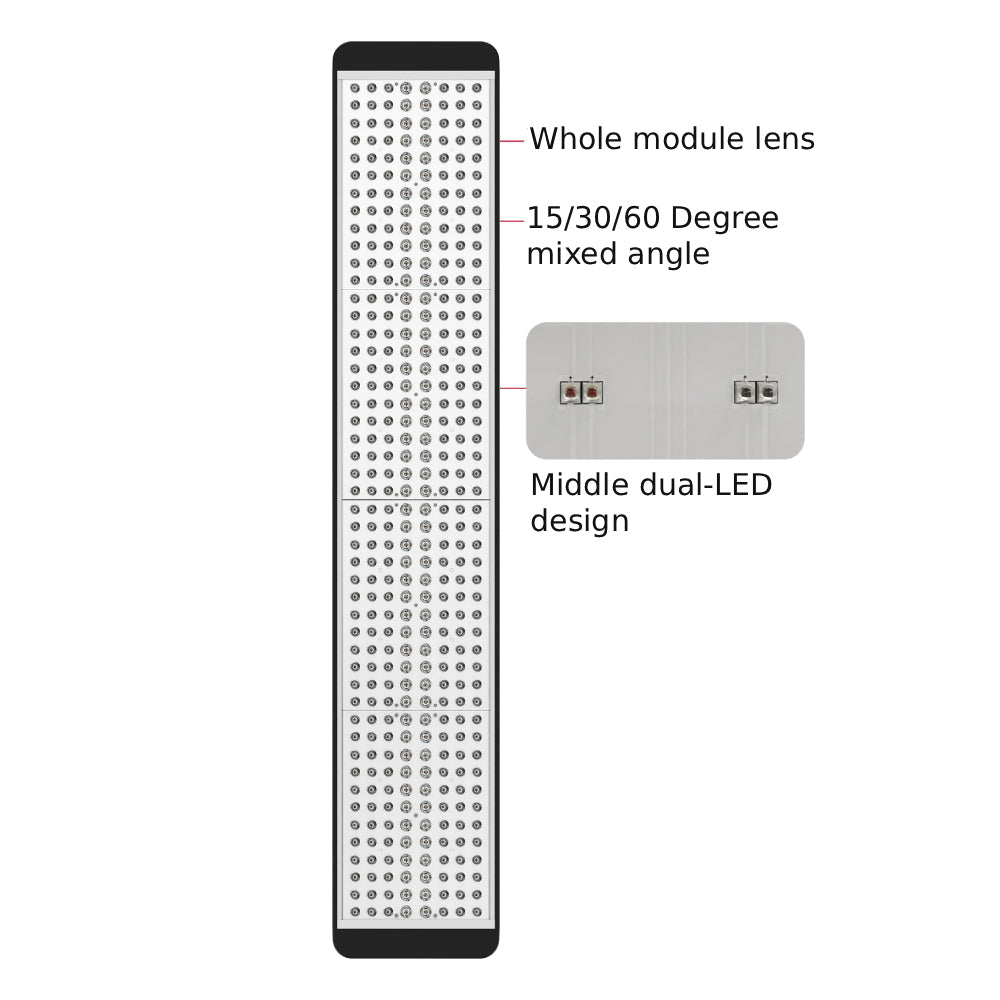

- Beam angles: multi-beam lens system — 30° core, 60° inner, 15° outer
- Pulsing: 0 to 5,000 Hz, adjustable

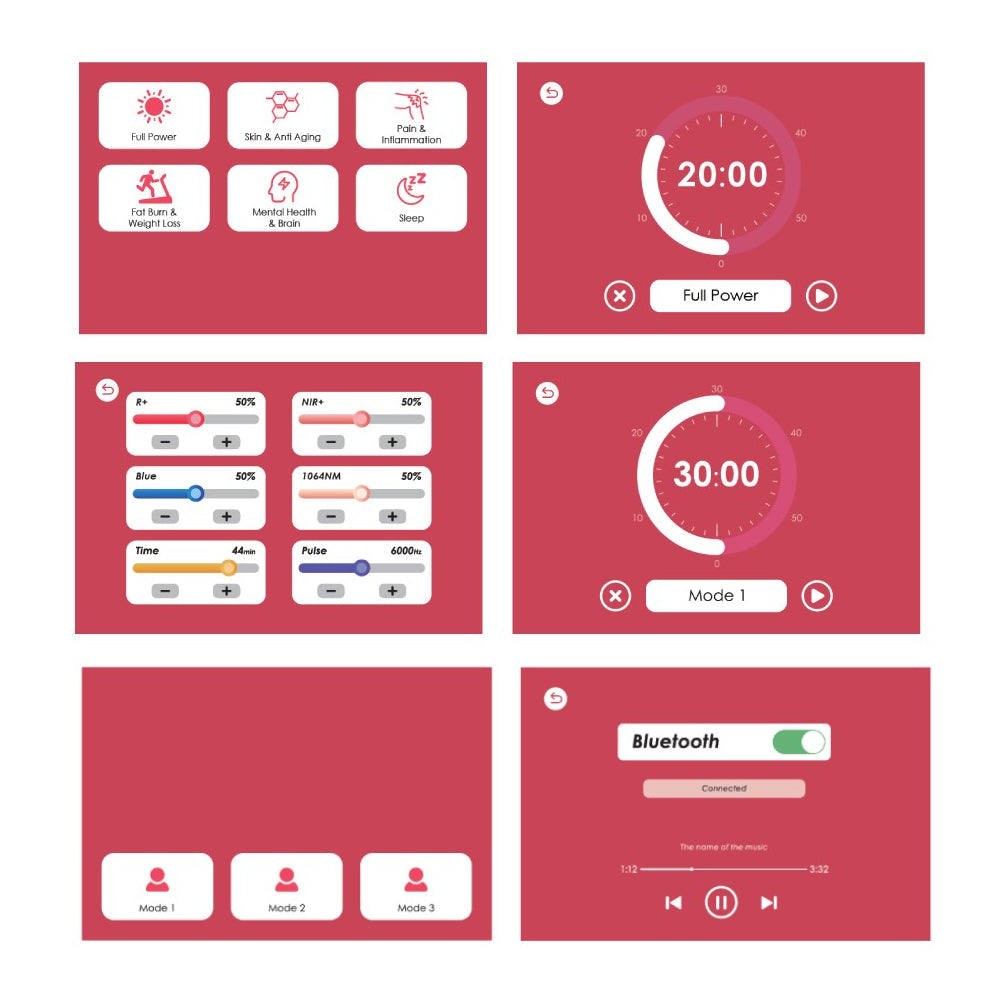

- Modes: 9 prebuilt, plus a custom mode with independent intensity and pulsing control across all four channels (red, blue, near-infrared, 1064nm)
- Flicker: none
- EMF: ≈0.0 µT at 6 inches or greater (measured with a Cornet EMF meter)
- Controls: touch interface and voice control; Bluetooth music integration
- LED lifespan: 100,000 hours
- Voltage: AC 100-240V
- Housing: iron
- Certifications: RoHS; CE (Low Voltage Directive and Electromagnetic Compatibility Directive)

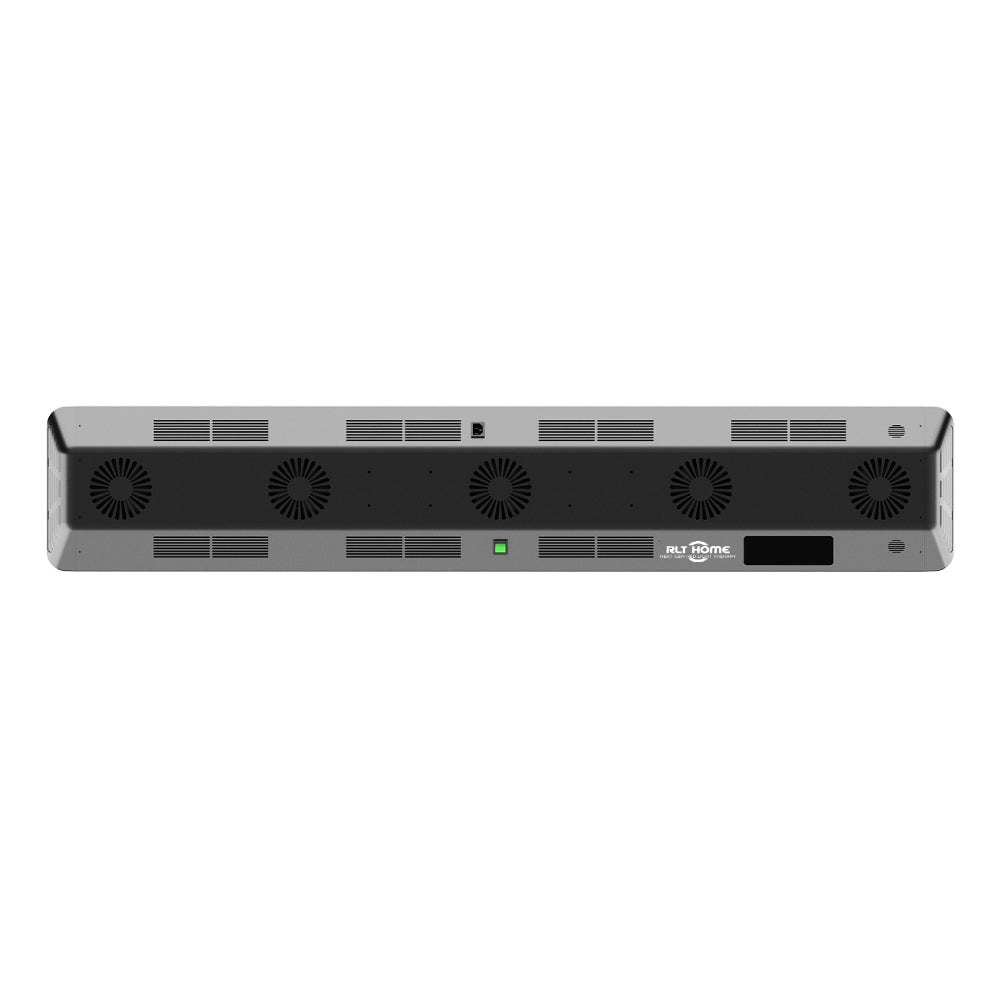

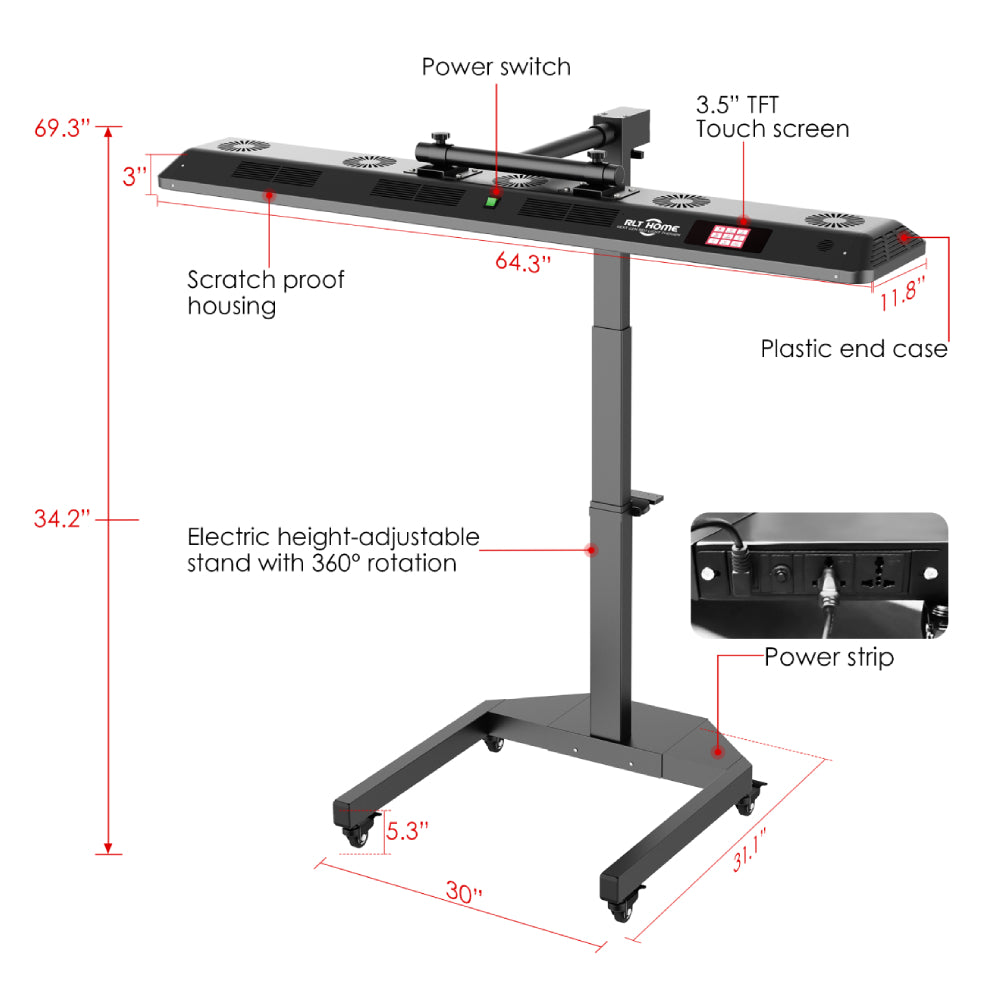

Device: 64.3" x 11.8" x 3" (1635 x 300 x 75 mm), 39.6 lbs / 18 kg. Shipped: 71" x 15" x 6", 51.5 lbs.

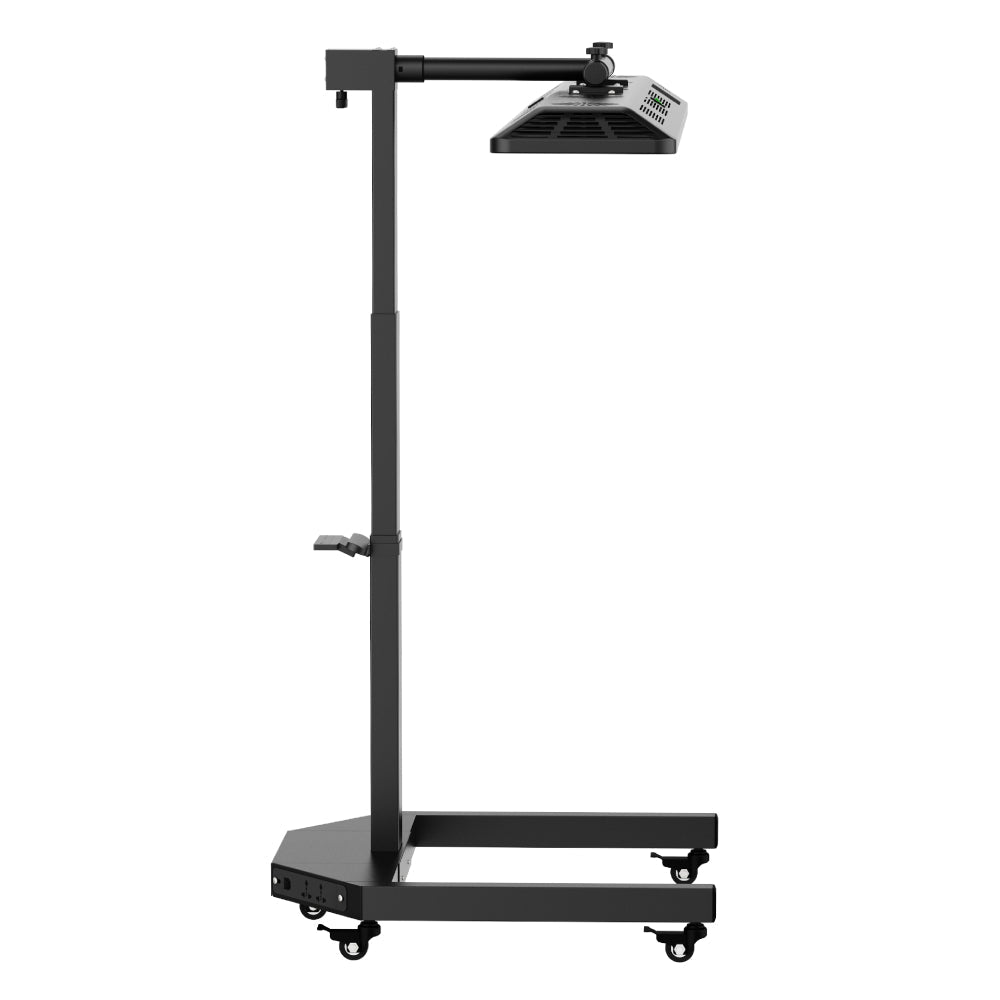

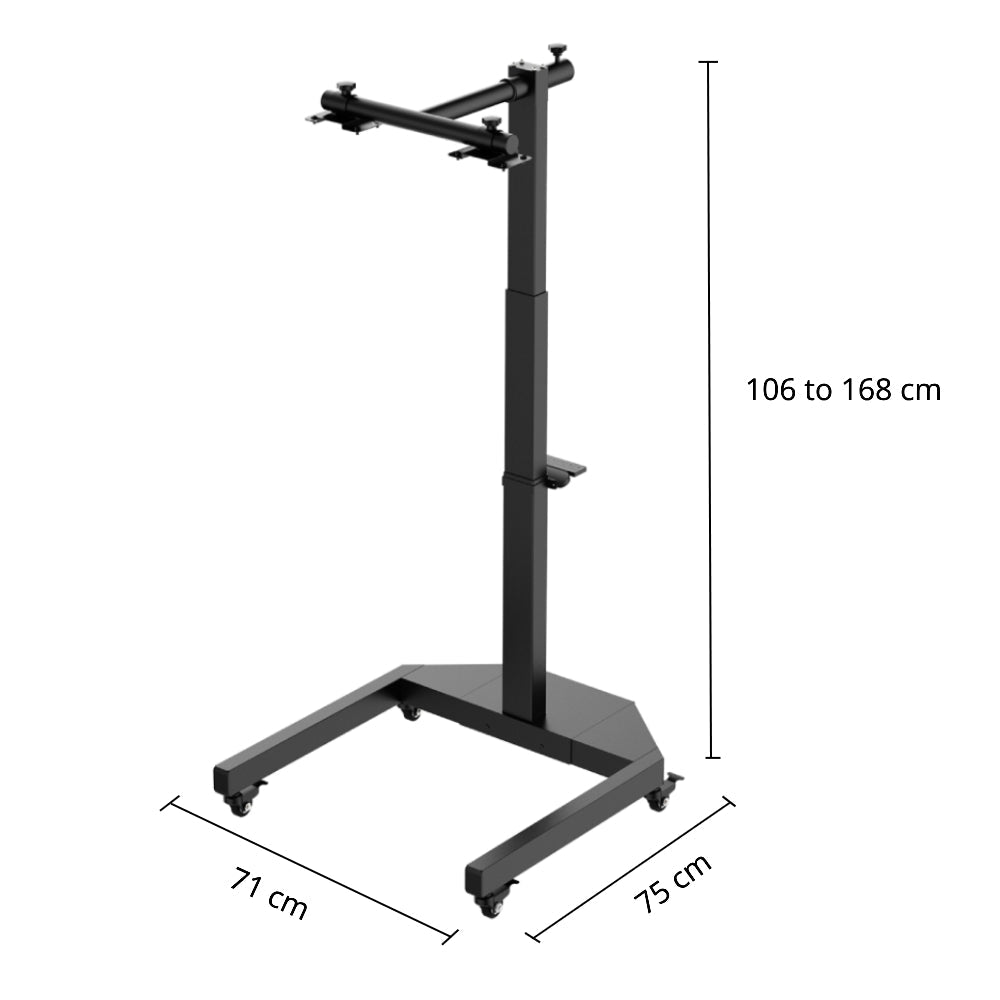

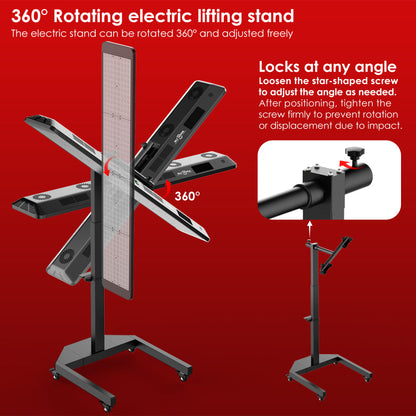

Stand: 33" x 28" x 5" (838 x 711 x 127 mm), 53 lbs / 24 kg. Shipped: 33" x 29" x 6", 61.3 lbs. Installed footprint approx. 3 ft x 3 ft. Height adjusts from 29" to 64". Clearance under a bed or massage table: 5.5" with wheels, 3" without.
Warranty
Every RLT Home device carries a 3-year warranty from the date of delivery, covering defects that render the device inoperable or impair its expected function — faulty LEDs, power issues, or structural failures caused by manufacturing errors.
Not covered: misuse or abuse, accidents, unauthorized modification, normal wear and tear, cosmetic damage that does not affect performance, improper storage, exposure to extreme conditions, use outside the recommended guidelines, and damage occurring after delivery.
Warranty service is handled by RLT Home directly. Email contact@redlighttherapyhome.com with the subject line "Defect/Malfunction - Order #" and photos or video of the issue, or call +1 888-703-6658. They review claims within 2 to 4 business days.
Shipping & Returns
Returns are accepted within 60 days of delivery. Return shipping is arranged and paid for by the customer. Returned units are inspected within 2 to 4 business days of arrival.
The device and the stand ship in separate boxes and may arrive on different days.
Questions? Contact us at support@motiontheorylabs.com before placing your order.
FDA Disclaimer
Motion Theory Labs is a retailer, not a medical provider. We are not licensed medical professionals, and nothing on this page is medical advice.
This product is not a medical device. It has not been evaluated by the Food and Drug Administration, and it is not intended to diagnose, treat, cure, or prevent any disease or medical condition.
The specifications on this page describe the product's construction and light output. They are not statements about what the product will do for your body, and no result is promised or implied. Individual experiences vary.
Consult a qualified healthcare provider before beginning any new light, heat, or cold protocol, particularly if you are pregnant, have a diagnosed medical condition, take medication that increases sensitivity to light, or have an implanted medical device.
