Description

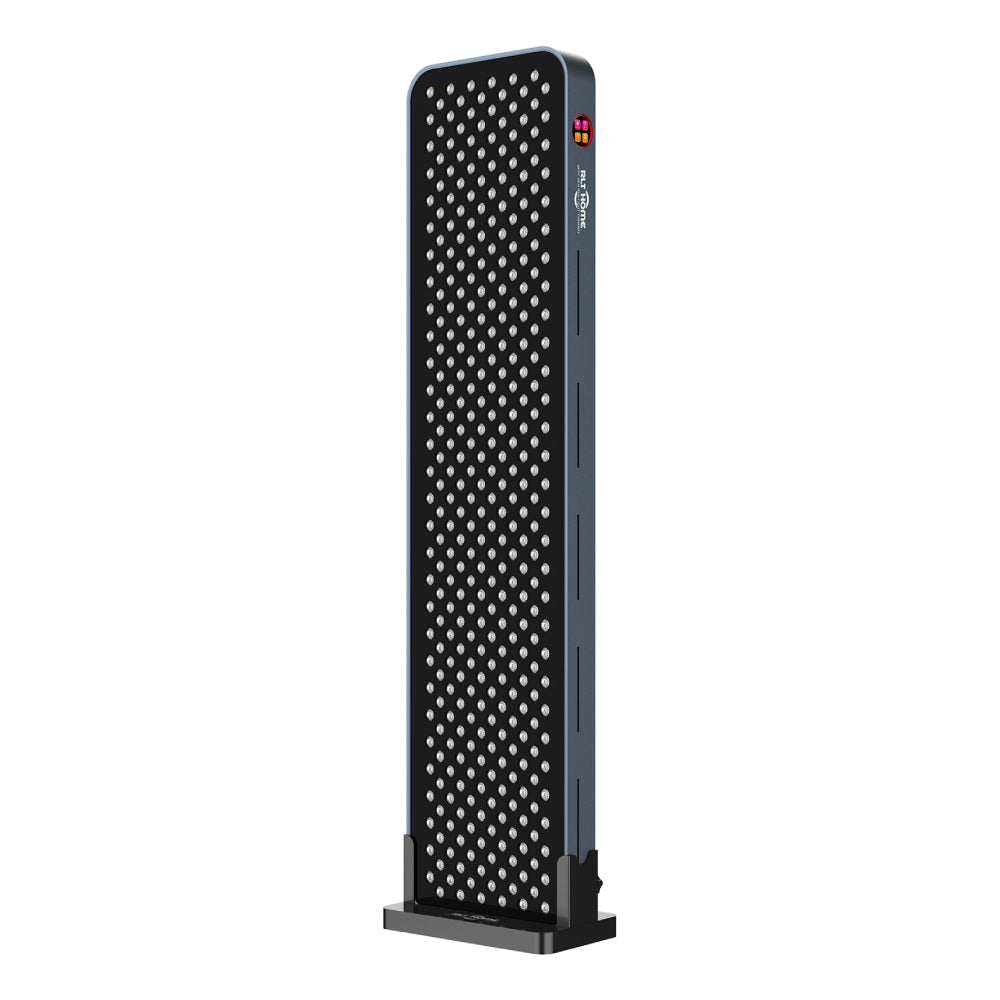

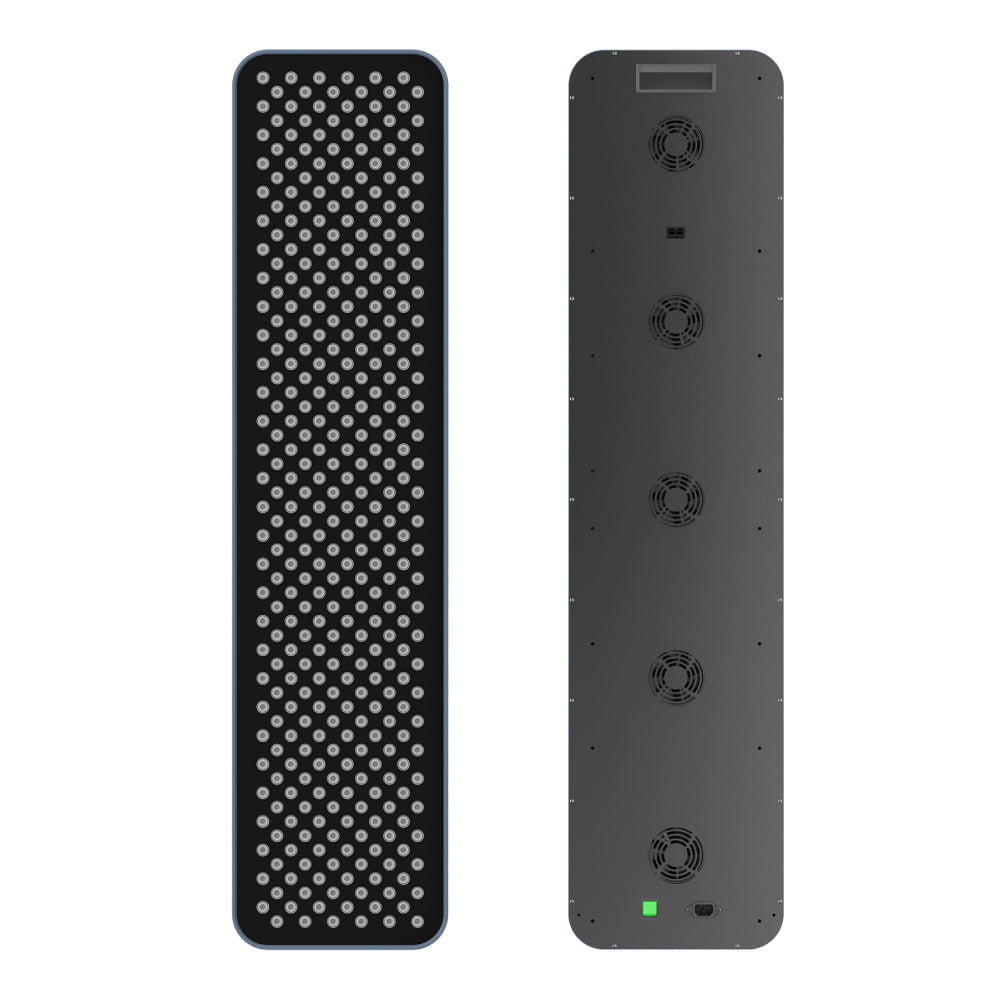

The Total Spectrum MAX is the mid-size panel in the line: 360 LEDs across a 49-inch aluminum housing, sized for larger areas like the torso, thighs, or back without giving up a corner of the room to a full-body panel.

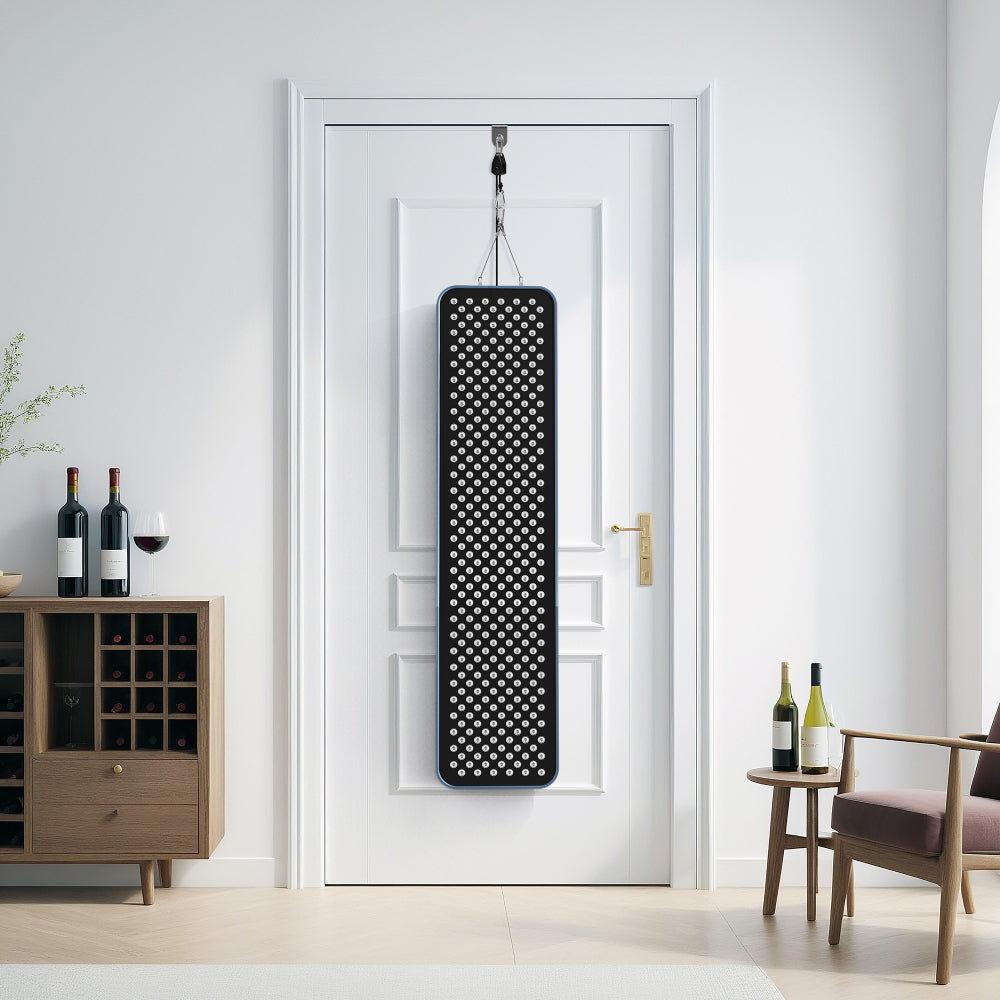

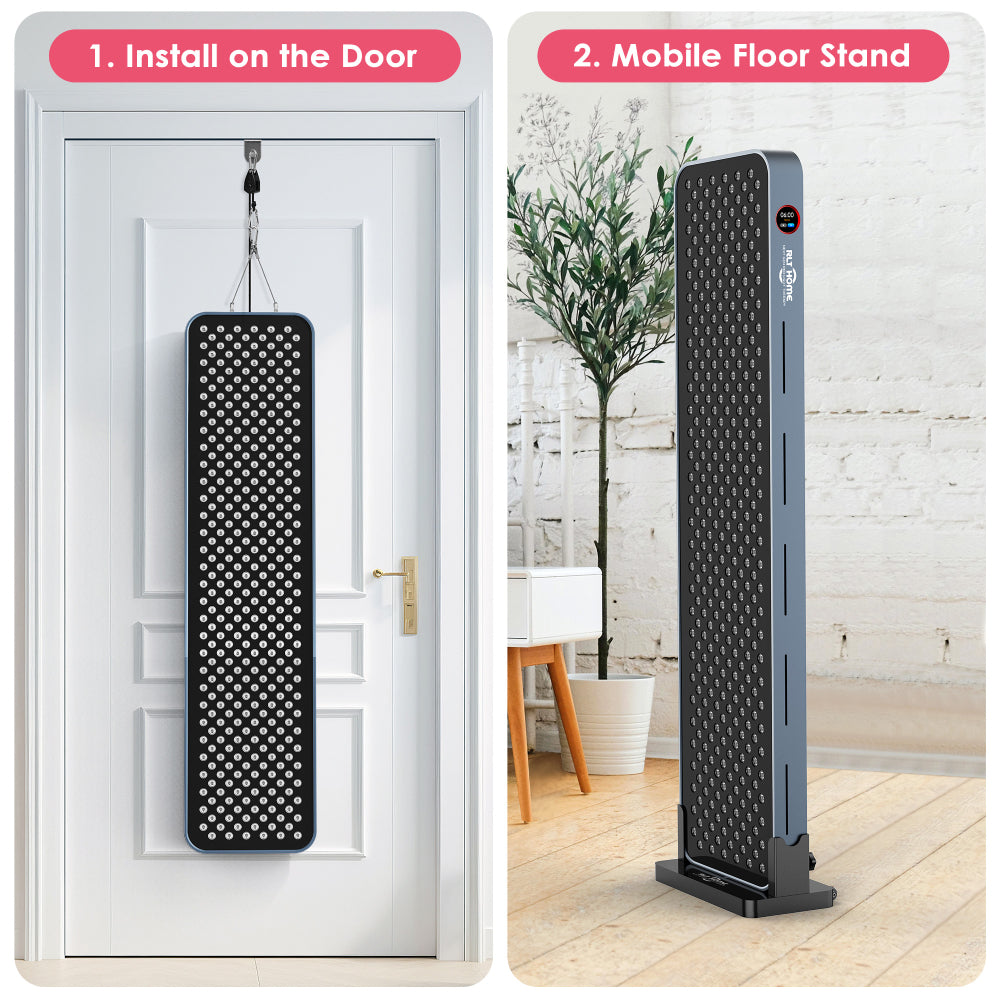

Seven wavelengths from 480nm through 1064nm, nine prebuilt modes, and a custom mode if you want to set it yourself. It comes with a stand, so it goes where you already sit.

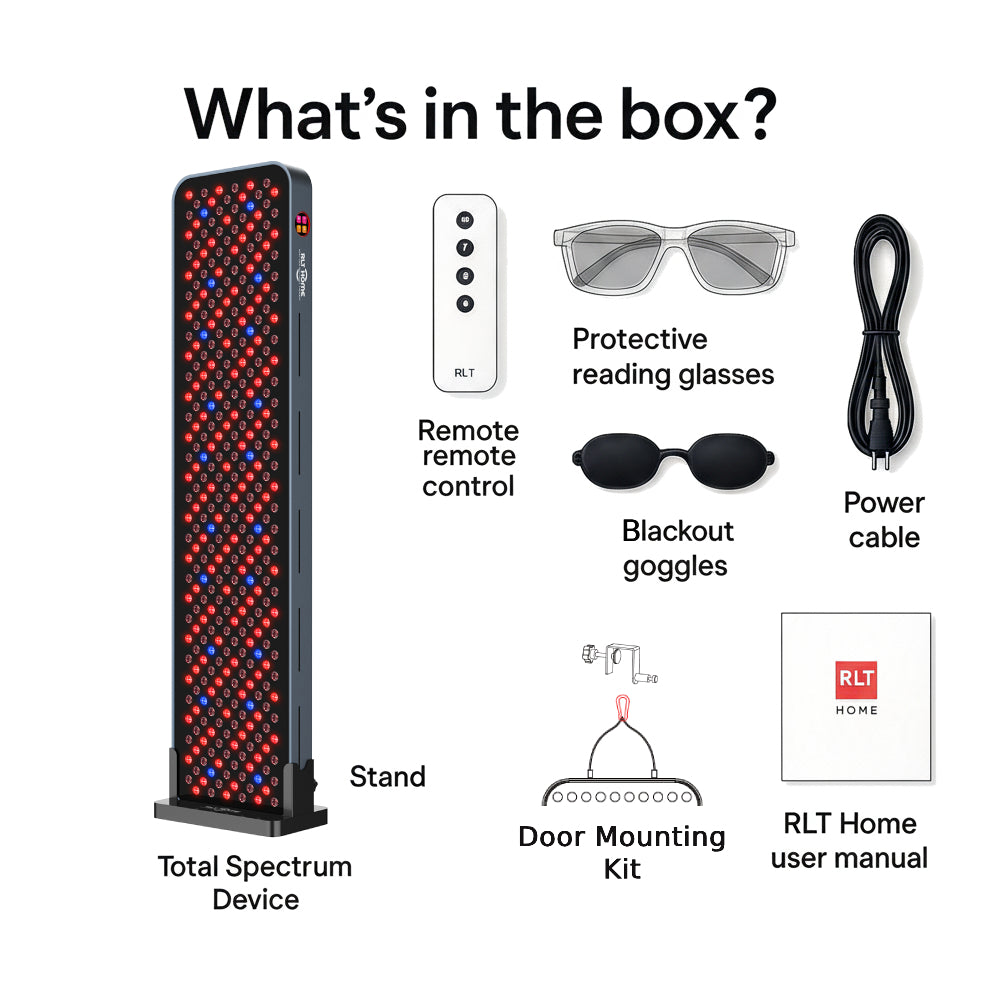

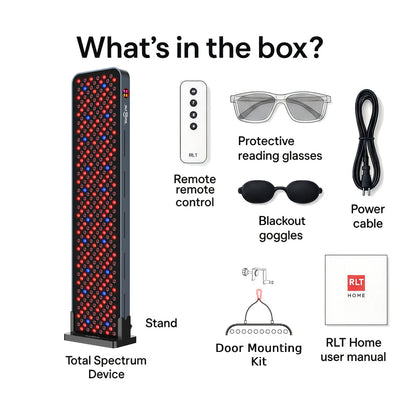

What's Included
- Total Spectrum MAX device

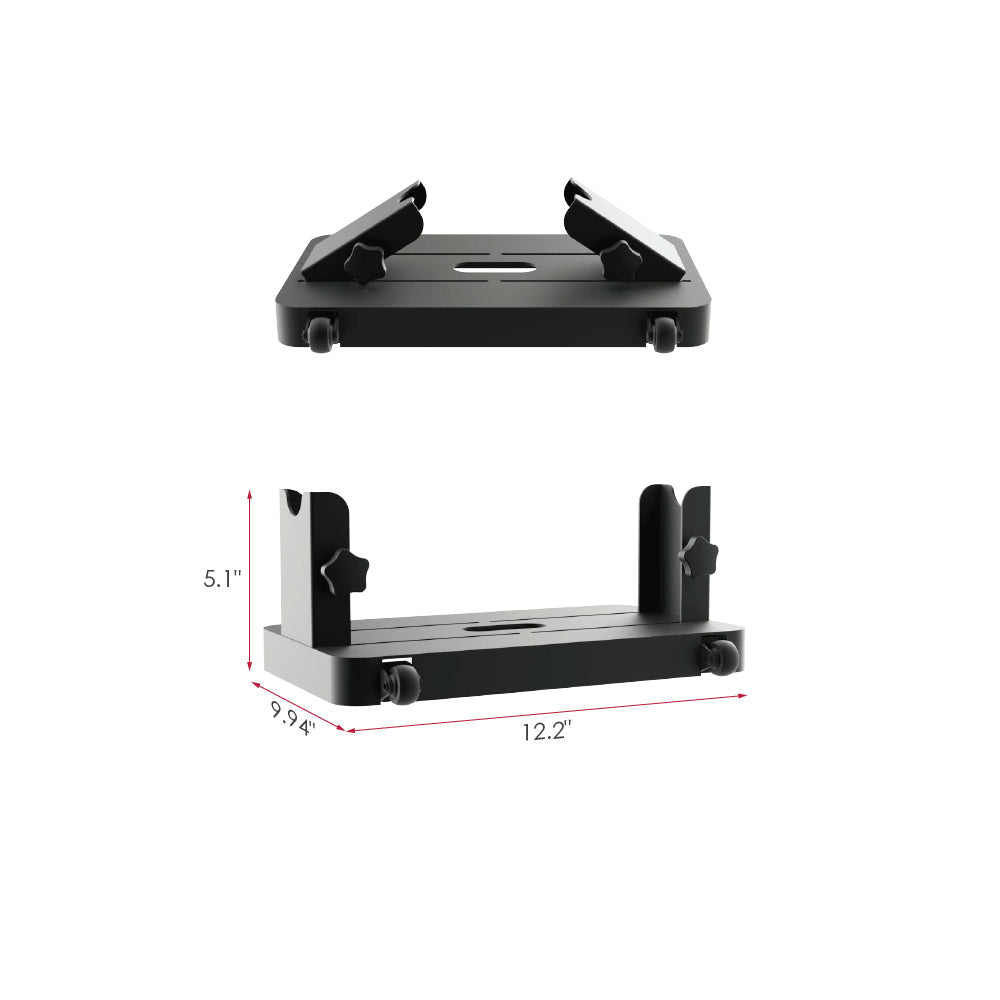

- Stand
- Remote control
- Protective reading glasses
- Blackout goggles
- RLT Home user manual
- Power cable
Specifications
- Total LEDs: 360

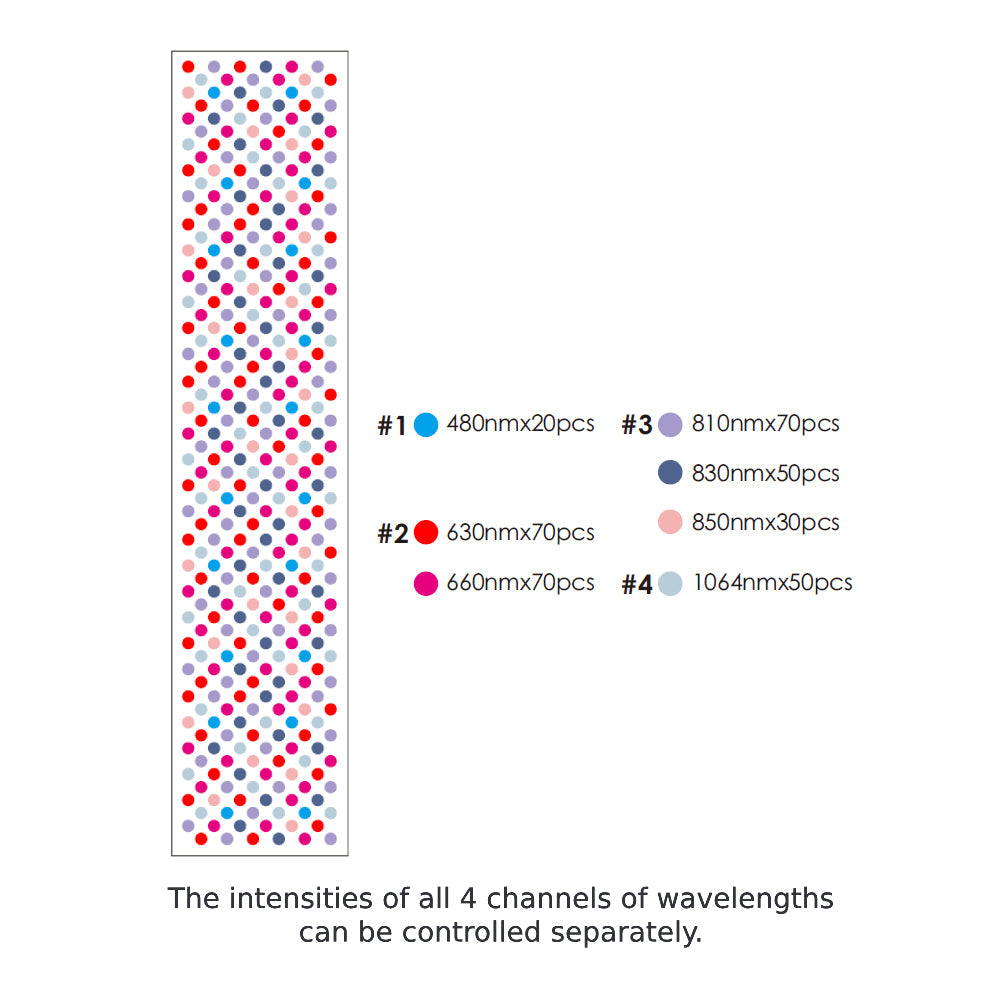

- Wavelengths: 480nm (6% density), 630nm (19%), 660nm (19%), 810nm (19%), 830nm (14%), 850nm (9%), 1064nm (14%)
- Irradiance: 172 mW/cm² at 8 inches (Solar Power Meter); 100.53 mW/cm² at 6 inches (Spectrometer)
- Pulsing: 0 to 5,000 Hz, adjustable
- Modes: 9 prebuilt, plus a custom mode with independent intensity and pulsing control across all four channels (red, blue, near-infrared, 1064nm)
- Flicker: none
- EMF: ≈0.0 µT at 6 inches or greater (measured with a Cornet EMF meter)
- Beam angle: 30 degrees
- LED lifespan: 100,000 hours
- Controls: touch interface and remote control
- Voltage: AC 100-240V
- Housing: aluminum
- Certifications: RoHS; CE (Low Voltage Directive and Electromagnetic Compatibility Directive)

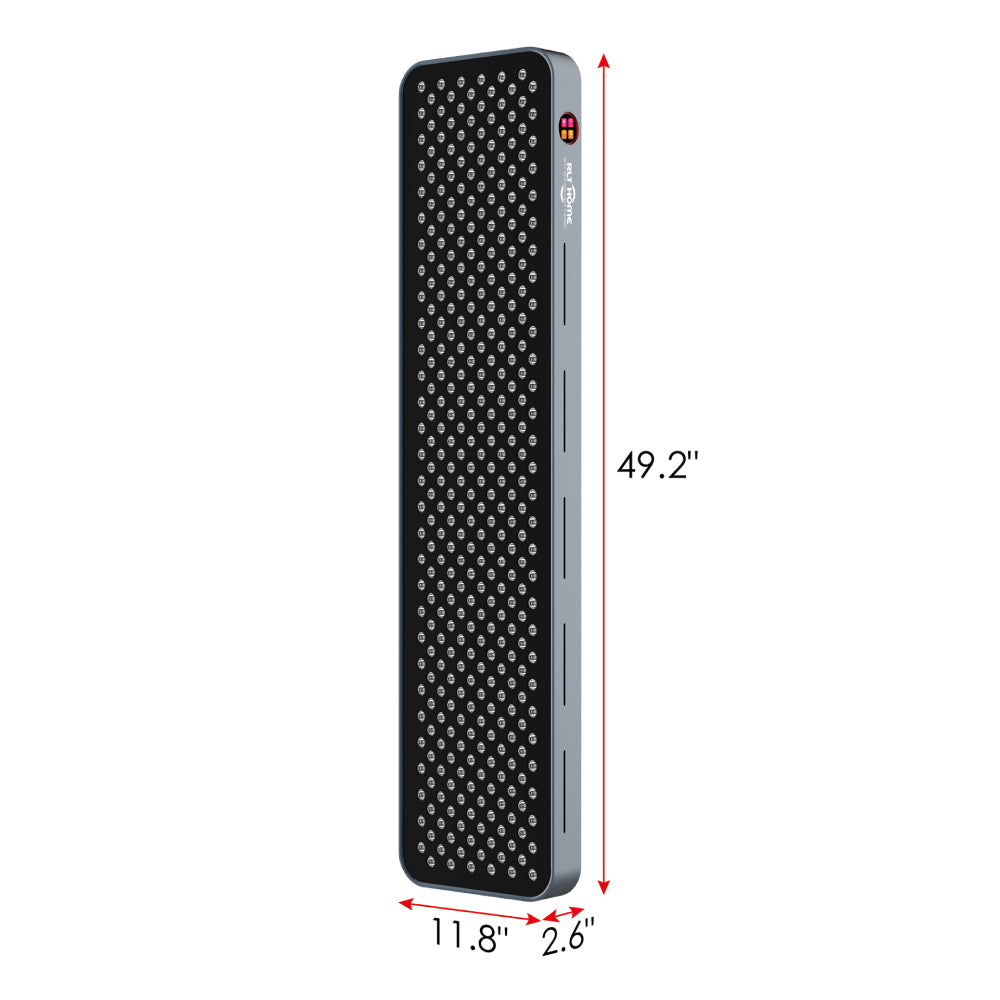

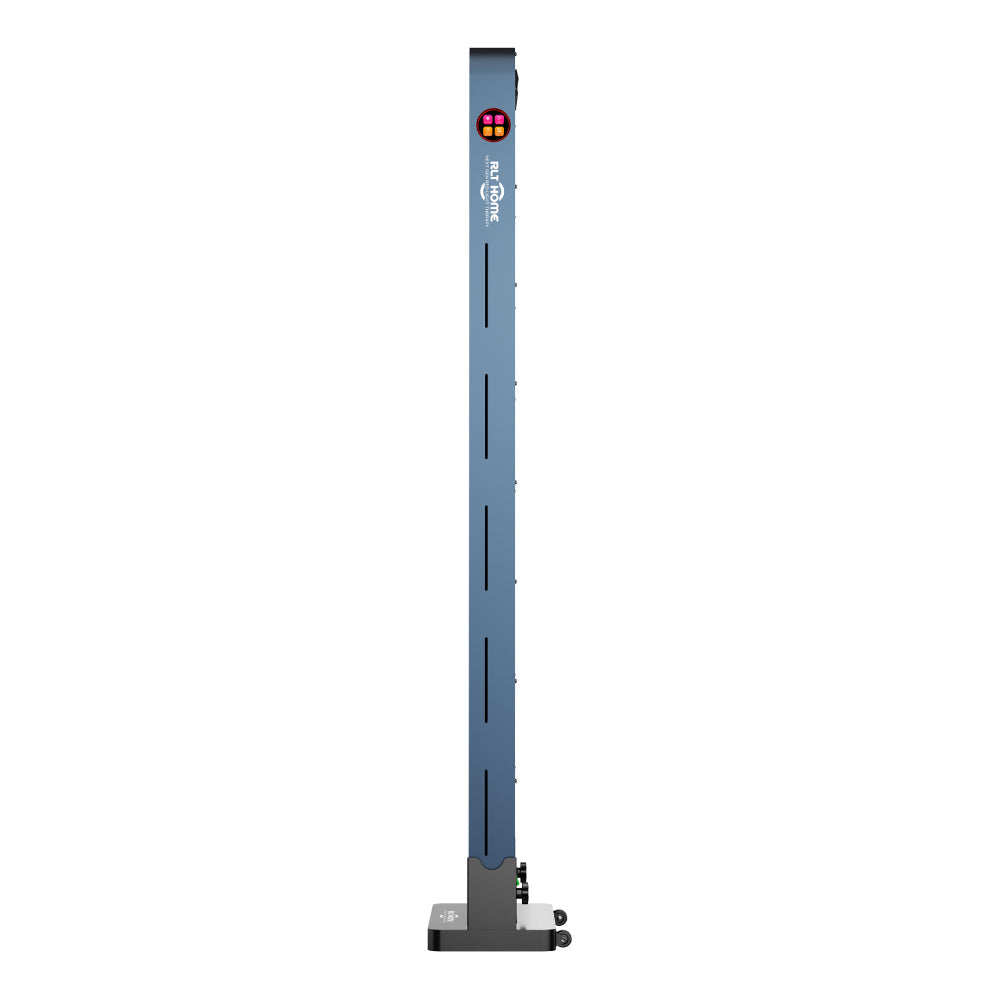

Device: 49.2" x 11.8" x 2.6" (1250 x 300 x 65 mm), 30.8 lbs / 14 kg. Shipped: 52" x 15" x 7", 38.6 lbs.
Warranty
Every RLT Home device carries a 3-year warranty from the date of delivery, covering defects that render the device inoperable or impair its expected function — faulty LEDs, power issues, or structural failures caused by manufacturing errors.
Not covered: misuse or abuse, accidents, unauthorized modification, normal wear and tear, cosmetic damage that does not affect performance, improper storage, exposure to extreme conditions, use outside the recommended guidelines, and damage occurring after delivery.
Warranty service is handled by RLT Home directly. Email contact@redlighttherapyhome.com with the subject line "Defect/Malfunction - Order #" and photos or video of the issue, or call +1 888-703-6658. They review claims within 2 to 4 business days.
Shipping & Returns
Returns are accepted within 60 days of delivery. Return shipping is arranged and paid for by the customer. Returned units are inspected within 2 to 4 business days of arrival.
Questions? Contact us at support@motiontheorylabs.com before placing your order.
FDA Disclaimer
Motion Theory Labs is a retailer, not a medical provider. We are not licensed medical professionals, and nothing on this page is medical advice.
This product is not a medical device. It has not been evaluated by the Food and Drug Administration, and it is not intended to diagnose, treat, cure, or prevent any disease or medical condition.
The specifications on this page describe the product's construction and light output. They are not statements about what the product will do for your body, and no result is promised or implied. Individual experiences vary.
Consult a qualified healthcare provider before beginning any new light, heat, or cold protocol, particularly if you are pregnant, have a diagnosed medical condition, take medication that increases sensitivity to light, or have an implanted medical device.
Our Shipping Policy
All orders ship via the method best suited to the size and weight of the product. Smaller items ship via standard parcel carriers. Large items such as saunas and fitness equipment ship via LTL freight and require a scheduled delivery appointment.
- Free shipping on every order in the Continental U.S. (excludes AK/HI), including freight delivery on large equipment. Nothing is added at checkout
- Freight deliveries are curbside unless otherwise noted
- You will be contacted to schedule a delivery appointment for freight orders
- Inspect all items carefully upon delivery before signing. Note any visible damage on the delivery receipt before the driver leaves — failure to note damage at delivery may affect your ability to file a claim
- For shipping questions, contact us at support@motiontheorylabs.com
Our Return Policy
We stand behind the products we carry and want you to be confident in every purchase.
- Most items are eligible for return within 30 days of delivery in original, unopened condition, less a 25% restocking fee
- Large freight items (saunas, fitness equipment) must be unopened and in original packaging to be eligible for return. A 25% restocking fee applies to all approved returns, and you pay return shipping, including freight. Once opened, they are not eligible for return or refund.
- Defective or damaged items are handled through the manufacturer warranty process — contact us at support@motiontheorylabs.com and we will assist
- Return shipping costs are the responsibility of the customer unless the item arrived damaged or defective
- For return requests, contact us at support@motiontheorylabs.com before sending anything back
What People Like
Aggregated from published reviews across the web, so the rating reflects every buyer, not just Motion Theory Labs customers.
This panel is highly regarded as a robust and effective solution for home-based light therapy, praised for its comprehensive 7-wavelength configuration that allows for targeted treatment ranging from surface-level skin concerns to deep tissue recovery. Users appreciate the build quality, the inclusion of science-backed usage protocols, and the balance of power and ease of use, making it a favored choice for those focused on anti-aging, muscle recovery, and improved sleep. While it is considered a significant financial investment, many find the clinical-grade performance, 60-day trial period, and 3-year warranty to be strong justifications for the price.
- Versatile 7 wavelengthsOffers a full therapeutic range including blue light for skin and 1064nm for deep tissue penetration.
- Clinical-grade performanceDelivers high irradiance and consistent, science-backed light output suitable for serious wellness routines.
- User-friendly designFeatures pre-programmed protocols and straightforward operation without requiring complex apps or internet connectivity.
- Comprehensive supportIncludes personalized usage plans, a 3-year warranty, and a generous 60-day trial period for peace of mind.
- High upfront costThe premium pricing at $1,795 represents a significant financial investment for many consumers.
- Significant panel weightAt approximately 38.6 lbs, the device is heavy and requires a dedicated, sturdy space for setup.
- Requires dedicated spaceIts size necessitates a permanent or semi-permanent location, which may not be ideal for users with limited room.
- Premium market positioningWhile high-quality, the cost puts it above many mid-range alternatives, potentially deterring budget-conscious buyers.
