Description
The Total Spectrum ELITE is the largest panel in the Total Spectrum line: 864 LEDs across a 65-inch housing, on an included adjustable electric stand. It runs seven wavelengths from 480nm through 1064nm, and carries the highest SWIR LED count in the lineup.

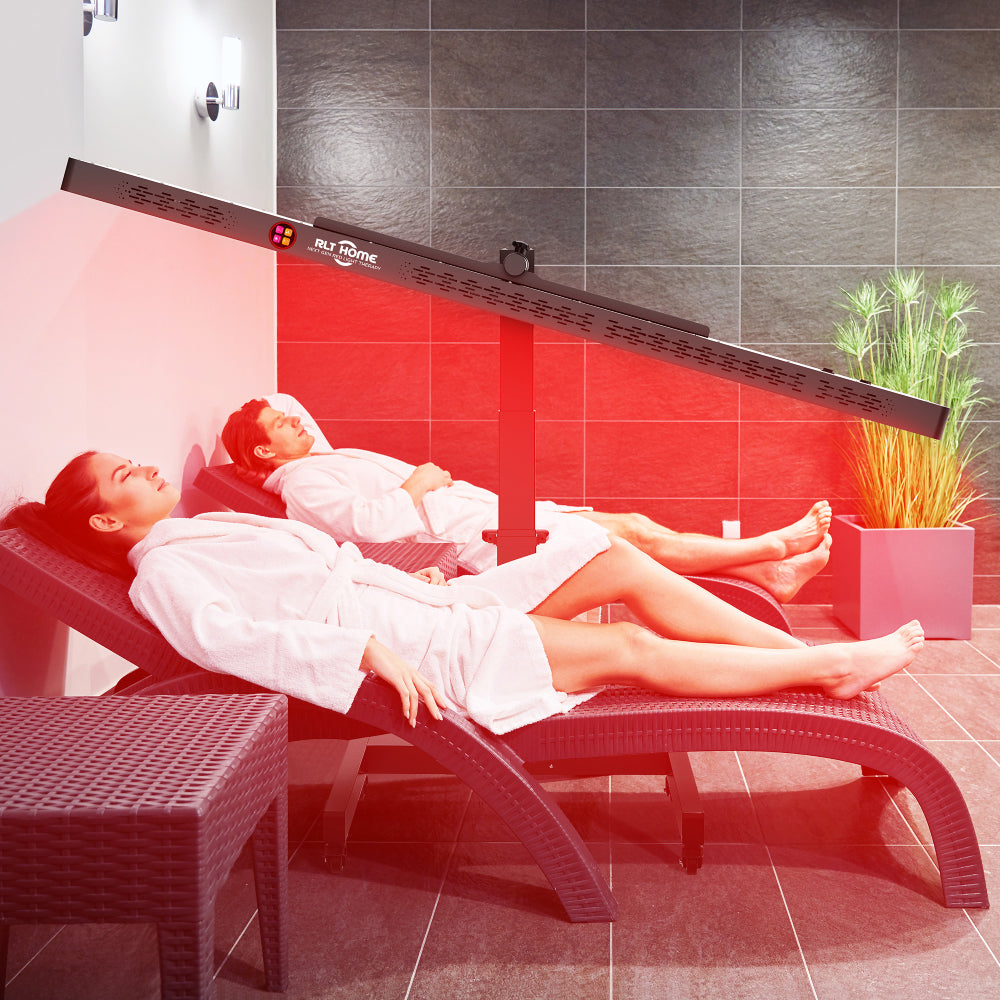

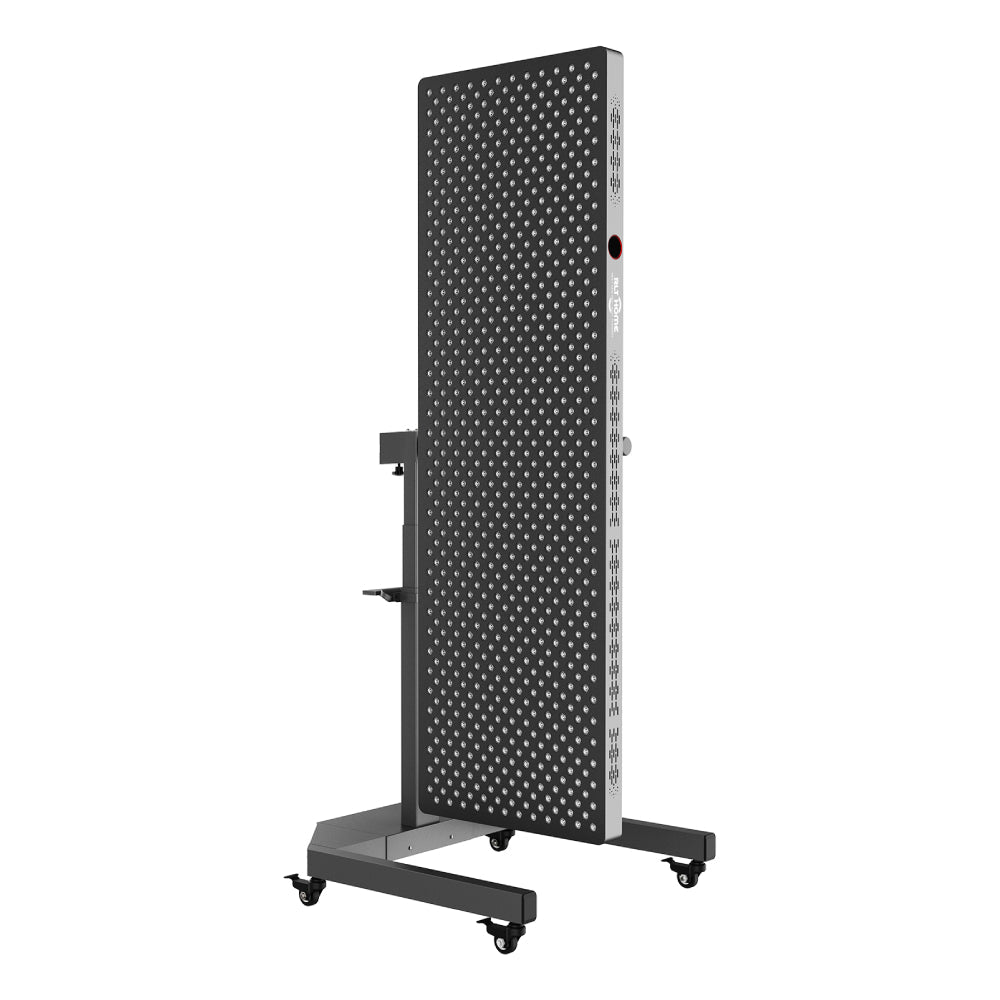

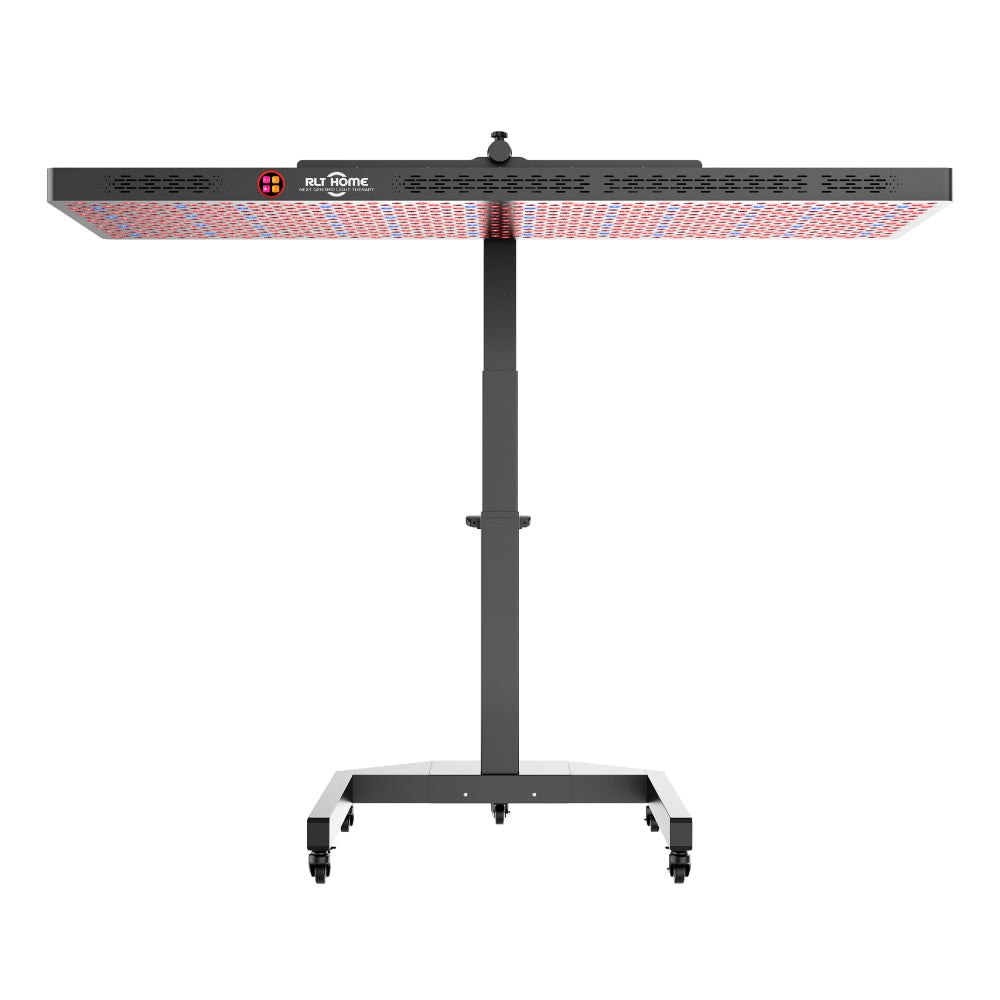

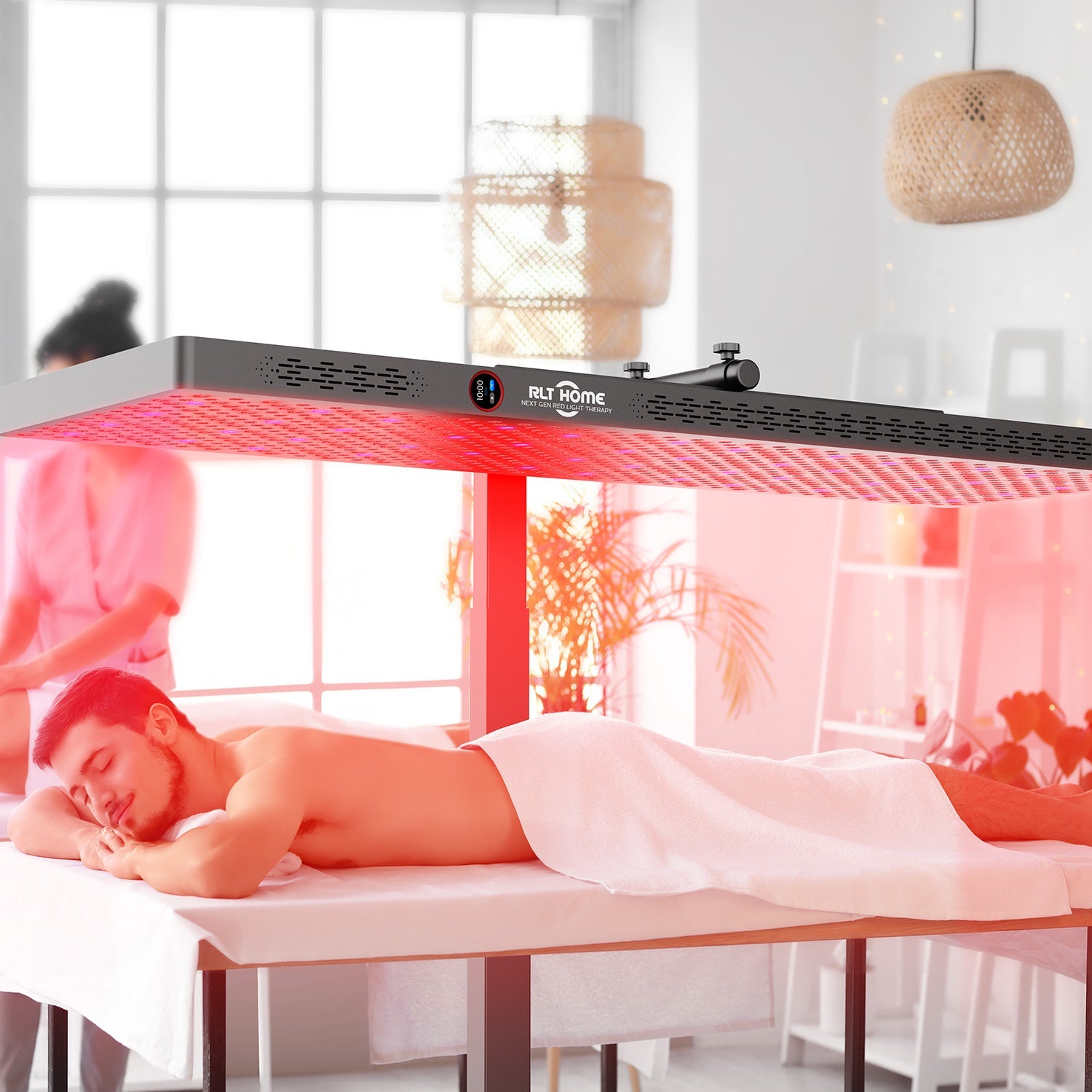

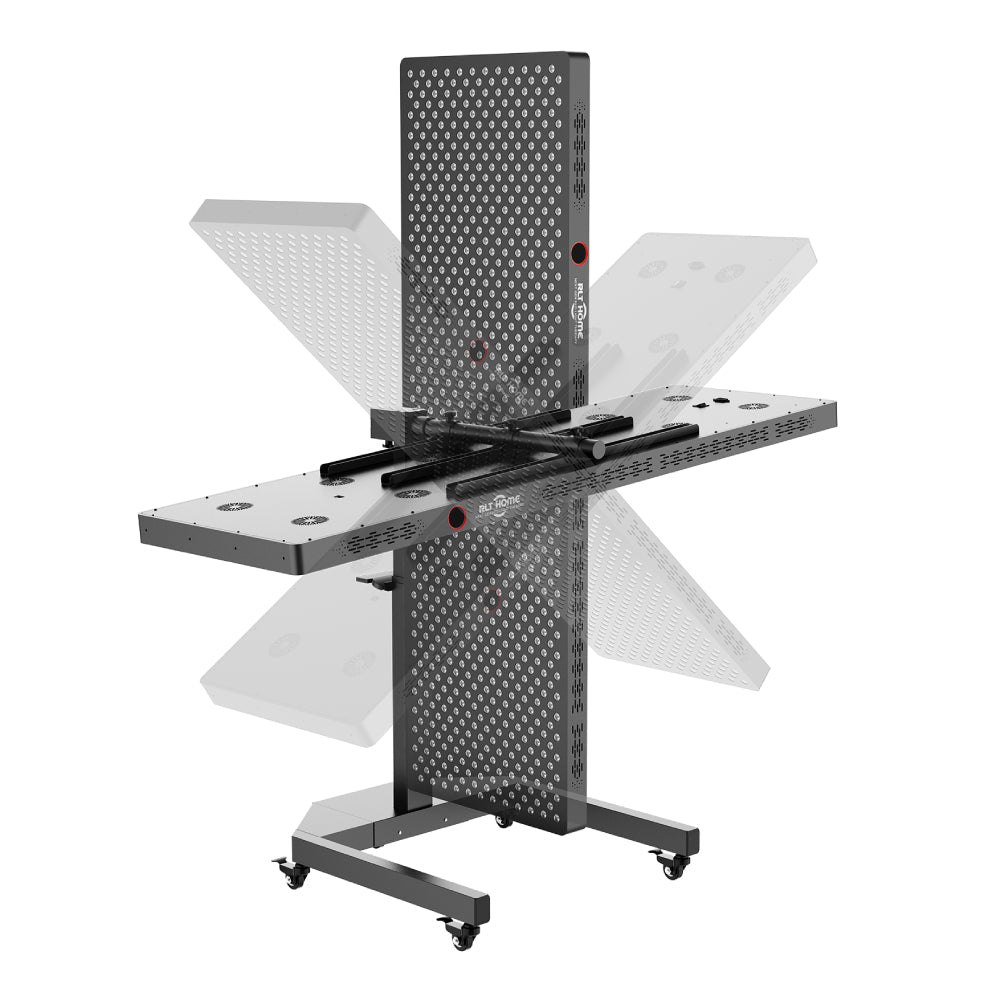

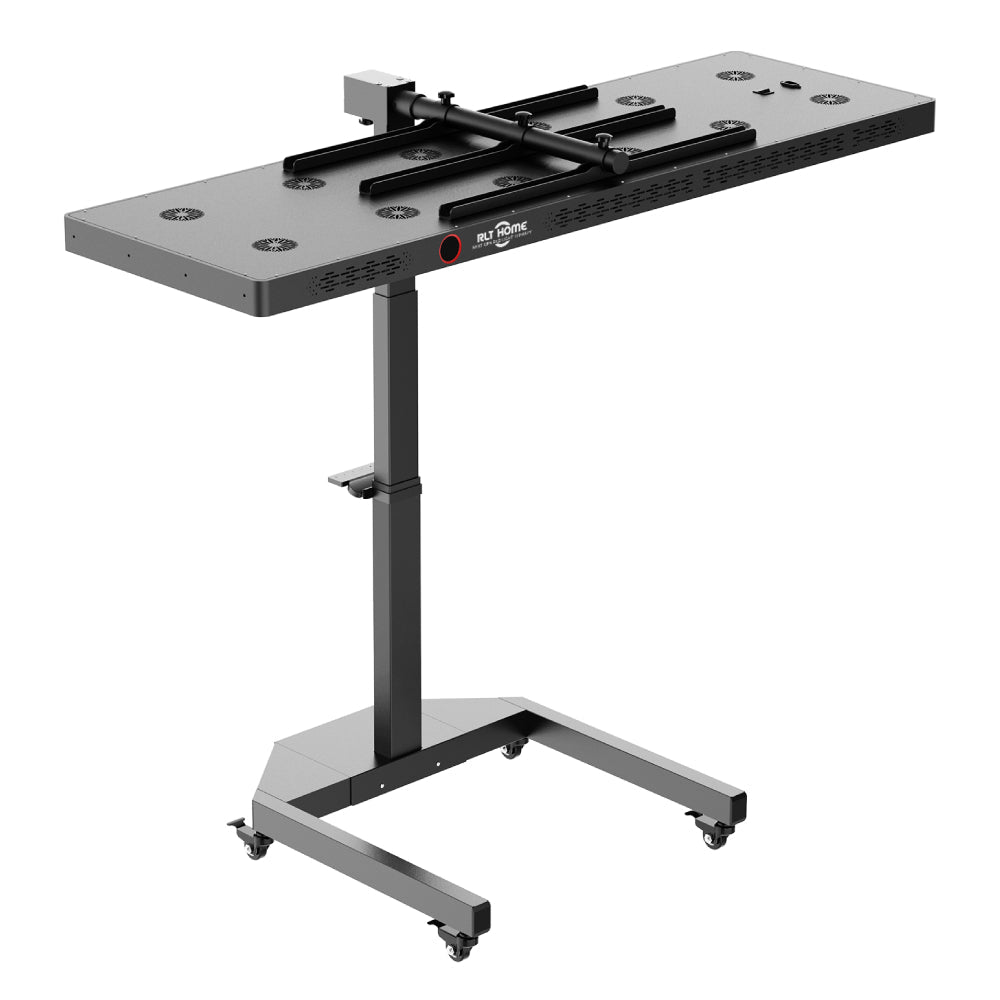

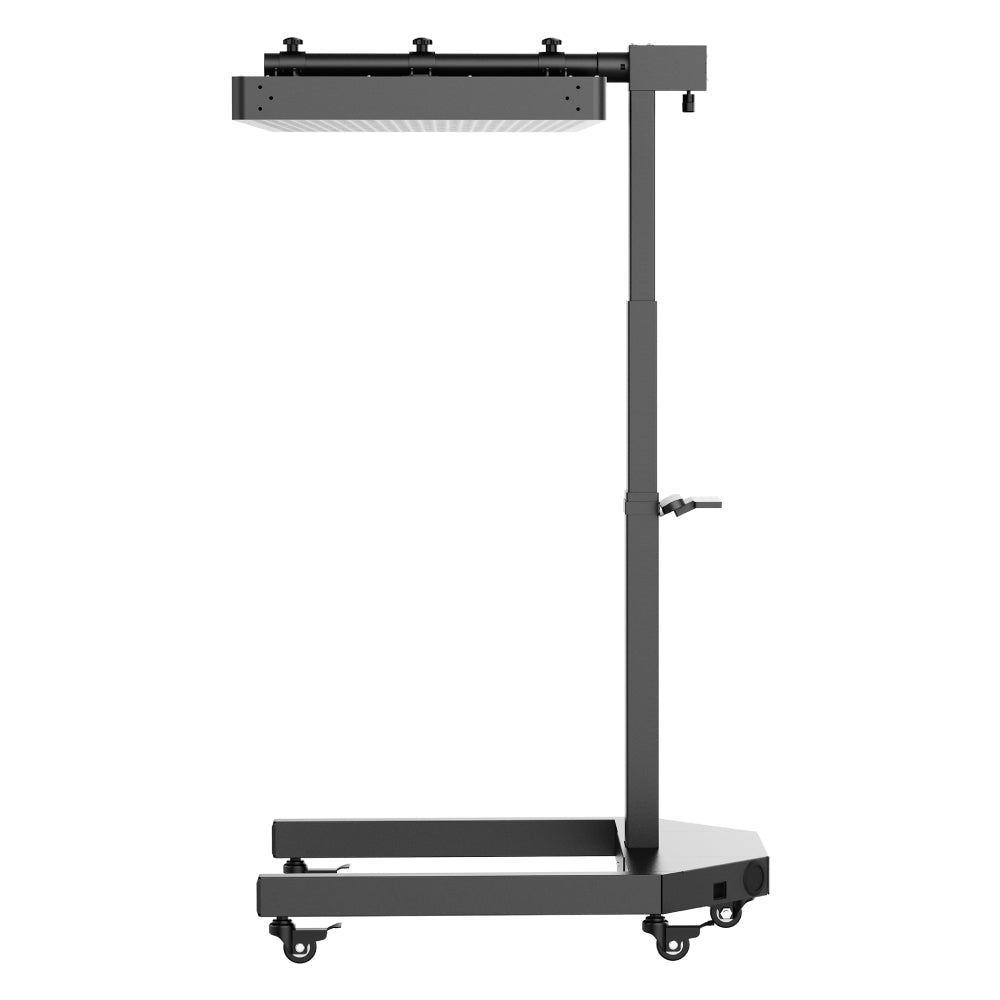

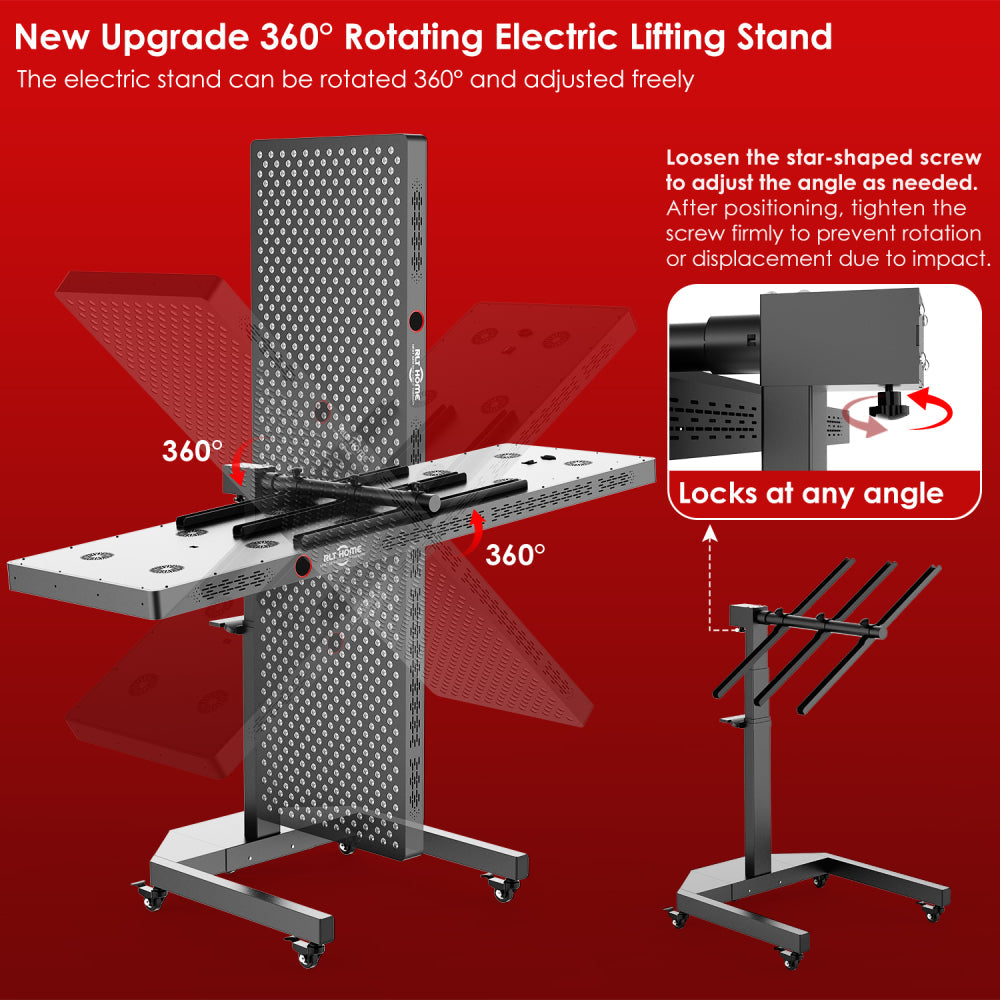

The stand adjusts from 29 to 64 inches and rolls, so the panel can sit over a bed or massage table for lying-down sessions, or stand upright for full-body coverage. Touch interface and remote control included.

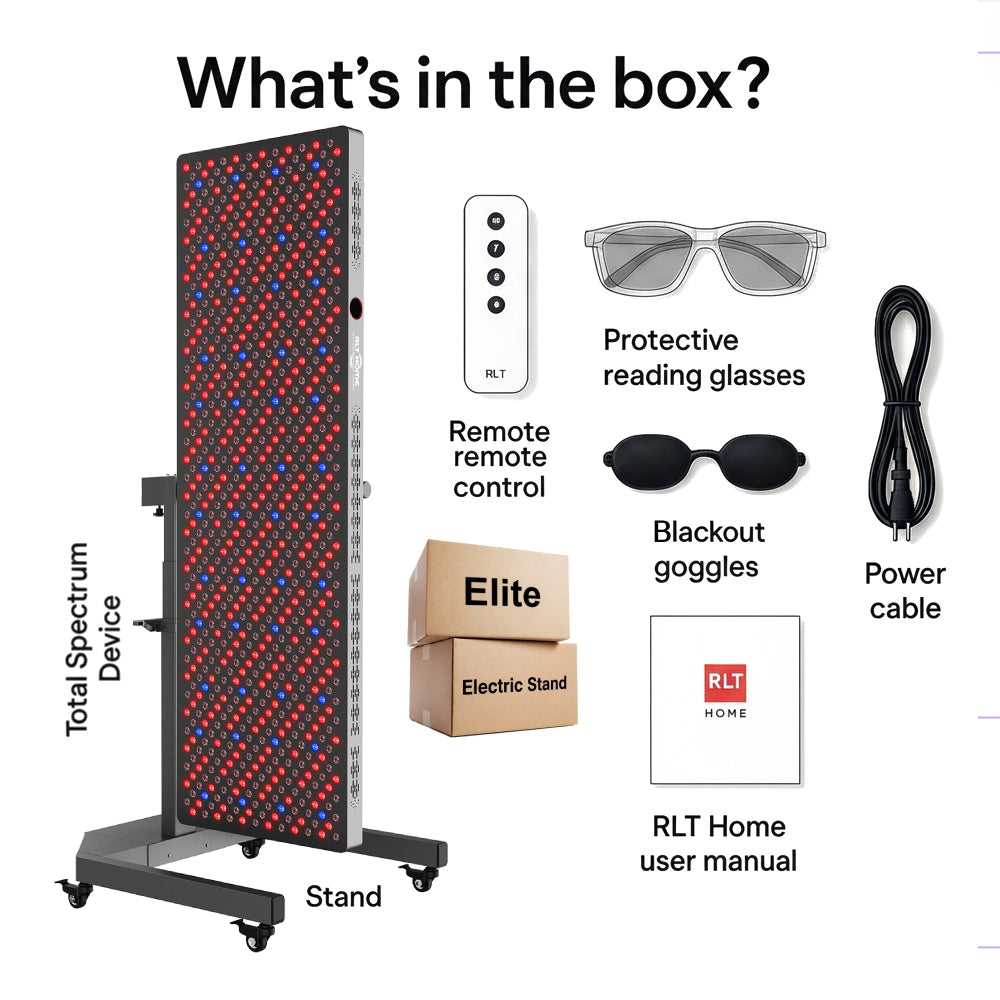

What's Included
- Total Spectrum ELITE device
- Adjustable electric stand
- Remote control
- Protective reading glasses
- Blackout goggles
- RLT Home user manual
- Power cable
The device and the adjustable electric stand ship in separate boxes.
Specifications
- Total LEDs: 864

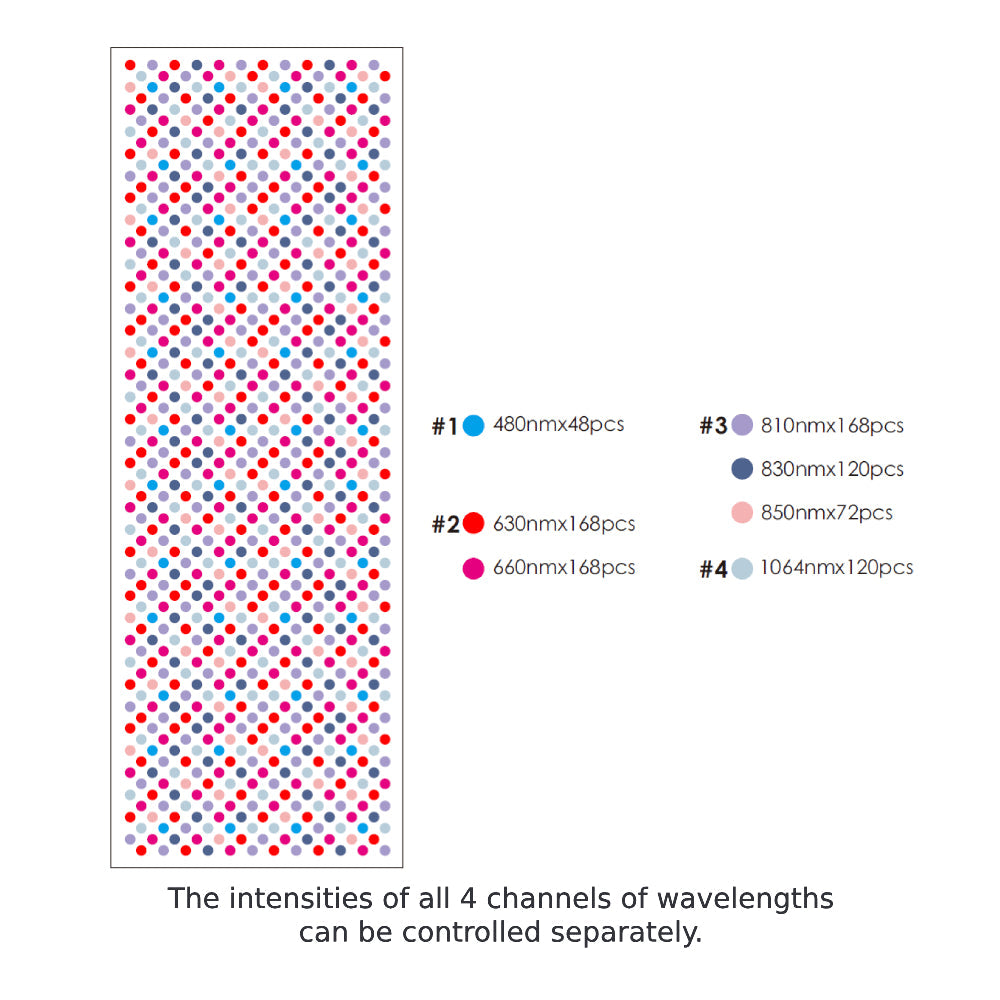

- Wavelengths: 480nm (6% density), 630nm (19%), 660nm (19%), 810nm (19%), 830nm (14%), 850nm (9%), 1064nm (14%)
- Irradiance: 179 mW/cm² at 8 inches (Solar Power Meter); 121.62 mW/cm² at 6 inches (Spectrometer)
- Pulsing: 0 to 5,000 Hz, adjustable
- Modes: 9 prebuilt, plus a custom mode with independent intensity and pulsing control across all four channels (red, blue, near-infrared, 1064nm)
- Flicker: none
- EMF: ≈0.0 µT at 6 inches or greater (measured with a Cornet EMF meter)
- Beam angle: 30 degrees
- LED lifespan: 100,000 hours
- Controls: touch interface and remote control
- Voltage: AC 100-240V
- Housing: iron
- Certifications: RoHS; CE (Low Voltage Directive and Electromagnetic Compatibility Directive)

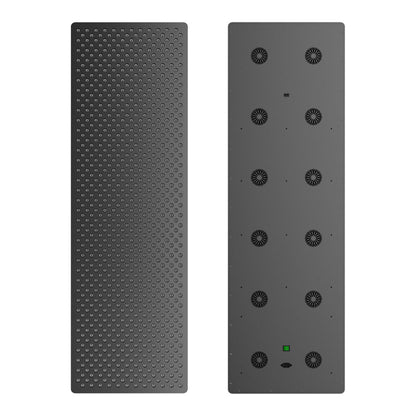

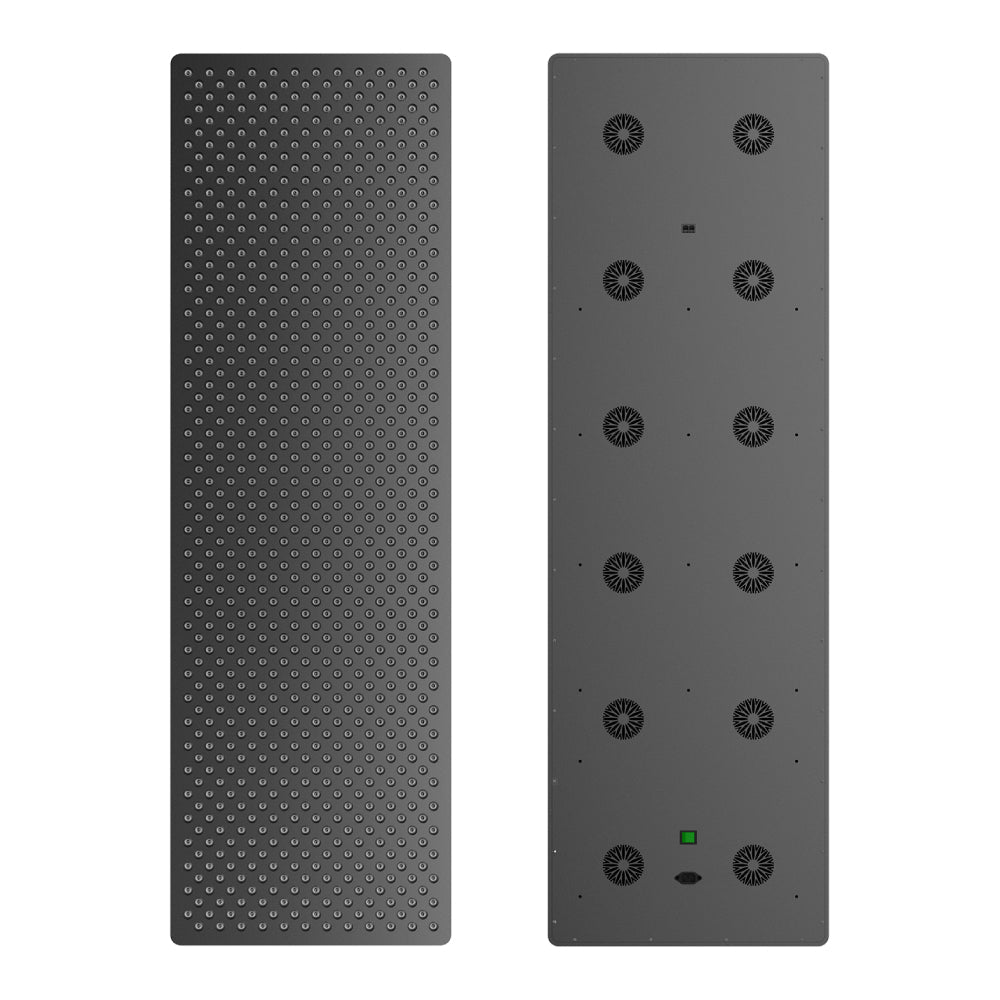

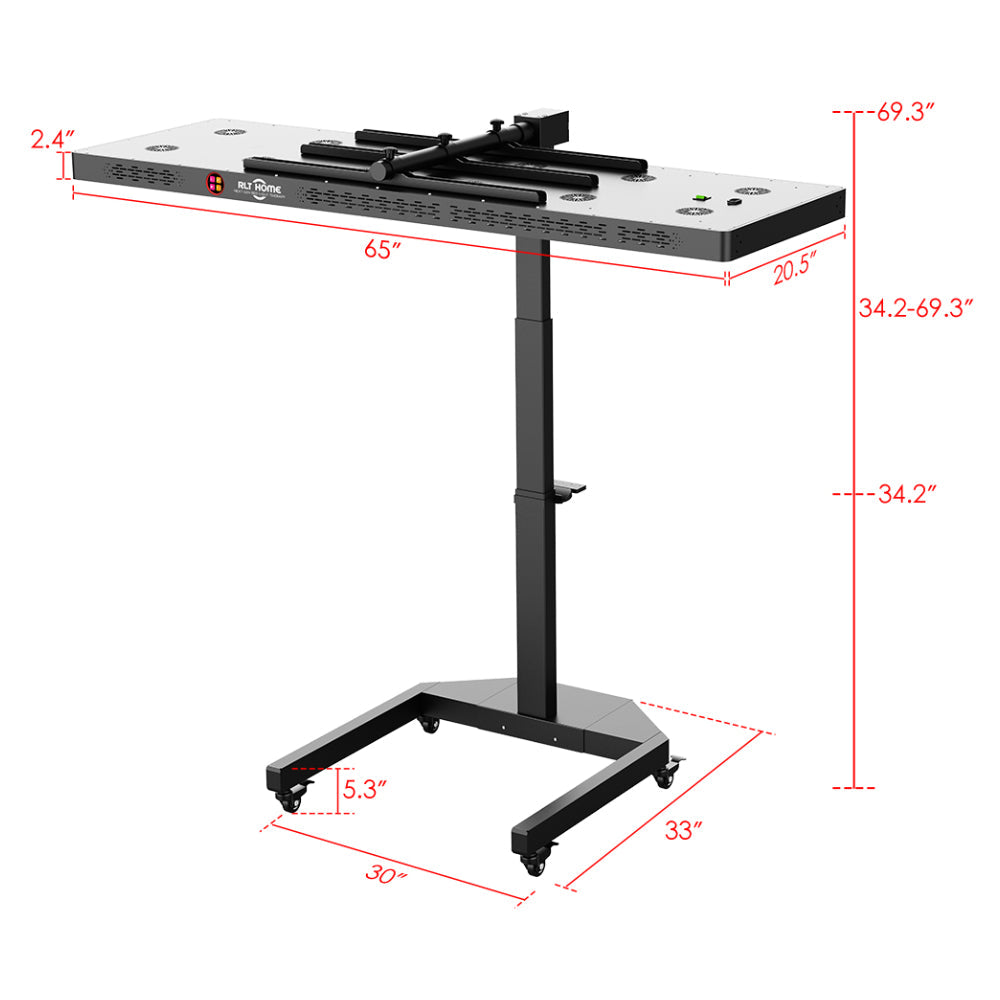

Device: 65" x 20.5" x 2.4" (1650 x 520 x 60 mm), 86 lbs / 39 kg. Shipped: 68" x 24" x 7", 92.6 lbs.

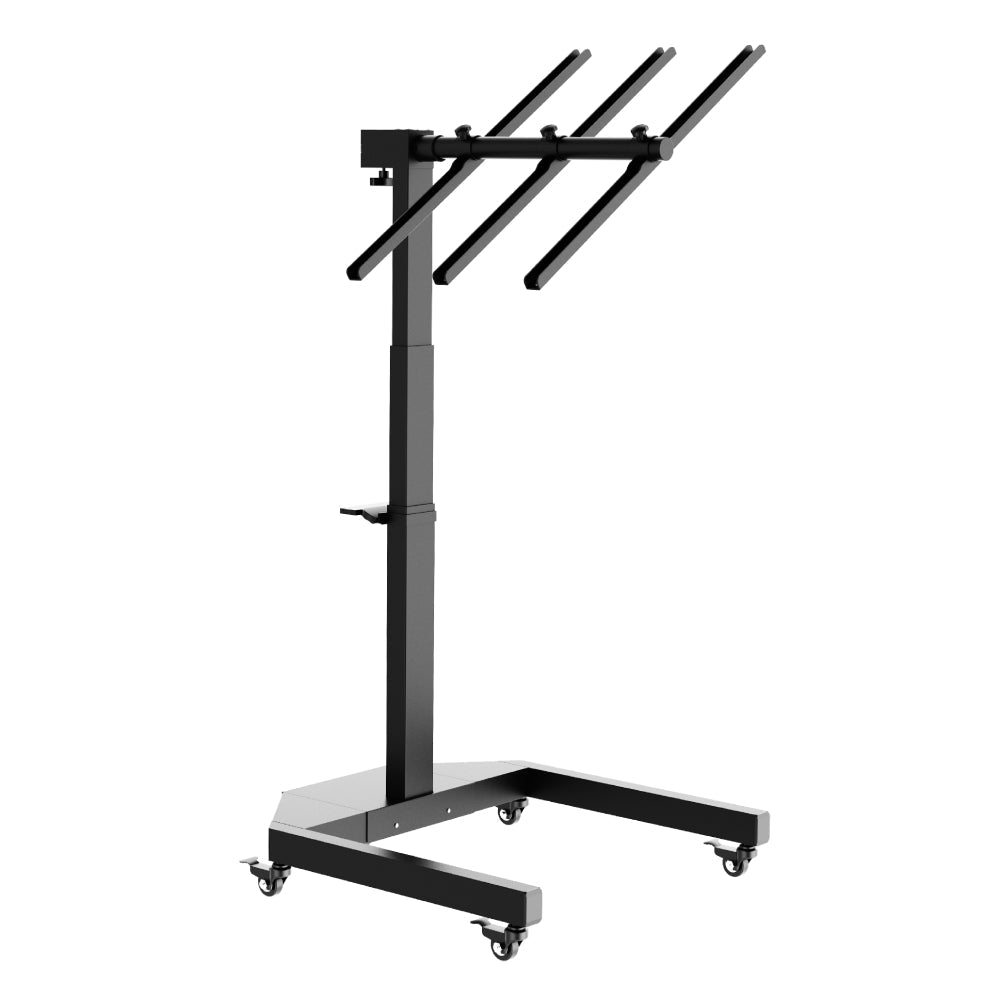

Stand: 33" x 28" x 5" (838 x 711 x 127 mm), 53 lbs / 24 kg. Shipped: 33" x 29" x 6", 59.5 lbs. Installed footprint approx. 3 ft x 3 ft. Height adjusts from 29" to 64". Clearance under a bed or massage table: 5.5" with wheels, 3" without.
Warranty
Every RLT Home device carries a 3-year warranty from the date of delivery, covering defects that render the device inoperable or impair its expected function — faulty LEDs, power issues, or structural failures caused by manufacturing errors.
Not covered: misuse or abuse, accidents, unauthorized modification, normal wear and tear, cosmetic damage that does not affect performance, improper storage, exposure to extreme conditions, use outside the recommended guidelines, and damage occurring after delivery.
Warranty service is handled by RLT Home directly. Email contact@redlighttherapyhome.com with the subject line "Defect/Malfunction - Order #" and photos or video of the issue, or call +1 888-703-6658. They review claims within 2 to 4 business days.
Shipping & Returns
Returns are accepted within 60 days of delivery. Return shipping is arranged and paid for by the customer. Returned units are inspected within 2 to 4 business days of arrival.
The device and the stand ship in separate boxes and may arrive on different days.
Questions? Contact us at support@motiontheorylabs.com before placing your order.
FDA Disclaimer
Motion Theory Labs is a retailer, not a medical provider. We are not licensed medical professionals, and nothing on this page is medical advice.
This product is not a medical device. It has not been evaluated by the Food and Drug Administration, and it is not intended to diagnose, treat, cure, or prevent any disease or medical condition.
The specifications on this page describe the product's construction and light output. They are not statements about what the product will do for your body, and no result is promised or implied. Individual experiences vary.
Consult a qualified healthcare provider before beginning any new light, heat, or cold protocol, particularly if you are pregnant, have a diagnosed medical condition, take medication that increases sensitivity to light, or have an implanted medical device.
